Matrix Magazine for Fast Tool Changeover

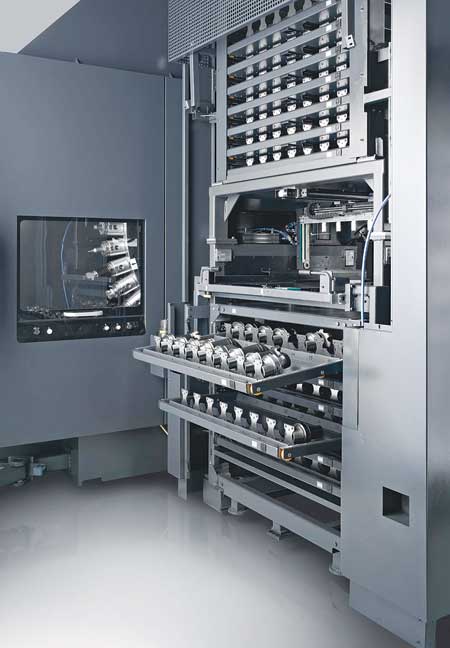

During the development of the ISO50 matrix magazine DMG MORI focused on three factors that would have a positive impact on productivity: a large number of tools, short changeover times and the smallest possible footprint. "Expressed in figures, this adds up to a total of 549 tools requiring an additional space of just 8.6 square meters (total footprint 32.5 m2)," said a company spokesperson. "With the fast integrated tool changer the DMC 80 U duoBLOCK achieves a maximum chip-to-chip time of 4.1 seconds. With the dense packaging of its wheel and rack magazine combination there is space for 512 tools. In this system, the upstream wheel magazine with its 37 tools located close to the machine ensures short tool availability times. The tool changer has direct access to both the wheel and the rack magazine to enhance flexibility and eliminate bottlenecks in tool availability."

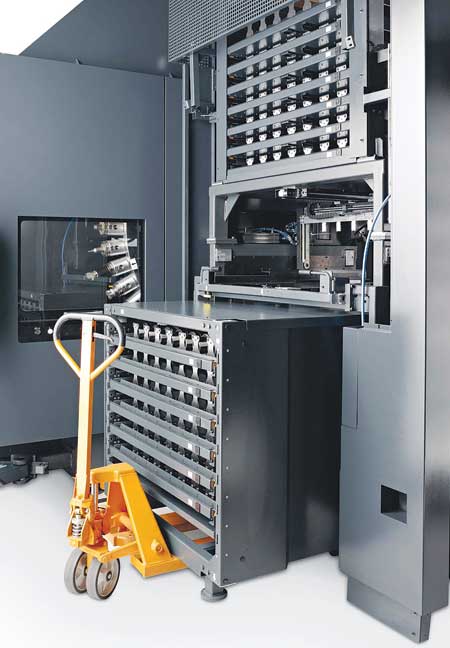

The concept of the ISO50 matrix magazine is suitable for many different tools, which can all be changed at the same time as working in the working area. Diameters of 100 mm to 280 x 400 mm (bridge tools) are possible. The maximum tool length in the case of the DMC 80 U duoBLOCK is 550 mm. Set-up operations are possible both at the rack magazine and the tool loading station of the wheel magazine. Complete toolboxes can be unloaded from the rack magazine so the user can set up block-by-block. The capacity of a box is 96 tools with diameters of 100 mm x 250 mm. The ISO50 also has additional equipment options that include tool identification in the two parts of the magazine plus mechanic tool breakage and brush taper cleaning.

"The already efficient DMC 80 U duoBLOCK gains considerably where productivity is concerned due to the matrix magazine," said the spokesperson. "The operator is distracted less by looking after tools and can carry out even more secondary work during primary machining time: work on the second pallet at the set-up station of the automatic pallet changer as well as loading of the rack and wheel magazine. This results in machine down times being reduced to a minimum.

"The rigid FEM-optimized design of the latest duoBLOCK generation promotes long-term accuracy. High static mass and low mass of the moving parts enable excellent dynamics. The DMC 80 U duoBLOCK puts these characteristics to good use in the manufacture of components with a maximum diameter of 900 x 1,330 mm. The Ø 800 x 630 mm pallets have a maximum load capacity of 1,400 kg.

"The extensive modular spindle program offers customers spindles for every application, from the standard 12,000 RPM, 121 Nm spindle to the high-torque SK 50 version gearbox drive spindle with 8,000 RPM and 727 Nm."
