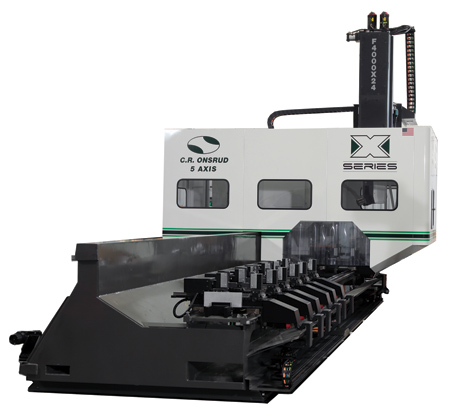

X Series Solution for Machining of Heavy Extrusions



C.R. Onsrud's X Series machining center is designed for complex machining and sawing of extrusions. This machining center is designed to process five sides of thick walled extrusions and index parts by using its independent servo programmable clamping system. An optional large capacity saw is available for material cutoff and mitering. FANUC controls provide reliability and seamless robotic integration.

"The X Series was our response to customers looking for a solution to machine heavier wall extrusions and need the reliability and support that could only be delivered by an American manufacturer," said Jeff Onsrud, Director of Sales & Business Development for C.R. Onsrud.

C.R. Onsrud X Series F4000X machining center specifications include: X travel of 244", Y travel of 54", Z travel of 42", overall length of 310", overall width of 152", overall height of 180". Onsrud's modular base allows for longer length machines if needed.

The X Series F4000X machining center features a 24 HP spindle at 24,000 RPM (optional 33 HP), control is FANUC 0i, tool management is 12-position rotary standard (optional 24-position quick change), scrap handling by chip pan is standard (optional chip conveyor), material handling is by servo positioned clamps. Additional optional features include: robotics integration, aggregate capable, 500 mm saw blade, auto tool measurement and linear scale feedback.

A PDF fact sheet and a functional demonstration video of the heavy wall extrusion milling X Series machining center can be viewed at cronsrud.com/xseries.html.

For more information contact:

C.R. Onsrud Inc.

120 Technology Drive

P.O. Box 419

Troutman, NC 28166

800-638-8185 / 704-508-7000

info@cronsrud.com

www.cronsrud.com
