Coolant Filter a Modular Solution for Abrasive Machining

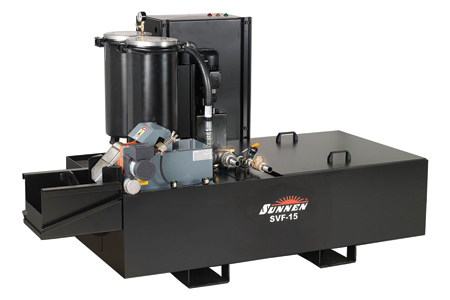

Sunnen's new SVF Series Grit Guard coolant filter is a build-to-suit solution with progressively higher levels of filtration available, along with chilling, to meet process requirements in abrasive machining.

Base Grit Guard models are available in 55- and 110-gallon capacities, equipped with twin and quad Sunnen PF filter cartridges, with a total filtration capacity of 8,800 sq. in. and 17,600 sq. in., respectively. Modular design allows adding a deep bed paper filter (110-gallon only), magnetic separator and cooling to suit the application. A heavy duty two-stage centrifugal pump provides a nominal flow rate of 2.5 gpm. A large easy to access settlement tank increases efficiency and filter element life.

Sunnen PF filter cartridges are available for 11, 18 and 60 micron chips in both oil and oil/waterbase compatible configurations. The magnetic separator option is capable of handling chips up to 100 micron size. The Grit Guard filter is ideal for most grinding, lapping and honing operations.

"The U.S.-made Grit Guard filter is built with high-reliability components and convenience features, such as fork truck pockets, level gauge, filter pressure gauge, spare filter storage compartment and overpressure protection," said a company spokesperson. The high capacity swarf container is equipped with a hoist eye, and a drain tray allows used filters to be drained back into the tank before disposal.

Grit Guard filters have an NFPA-79 compliant electrical system and a Brinkman progressive-stage centrifugal pump. Filter options include an integrated PRAB magnetic separator, deep bed paper filter (110-gallon only) and Turmoil chiller. A unit status light that alerts operators to reduced flow conditions is standard. Grit Guard filters come with full documentation, and Sunnen stocks spare parts for rapid delivery.

For more information contact:

Sunnen Products Company

7910 Manchester Rd.

St. Louis, MO 63143

800-325-3670 / 314-781-2100

sales@sunnen.com

www.sunnen.com
