The latest generation of the Takumi U800 incorporates a variety of new features that further enhance performance and user-friendliness.

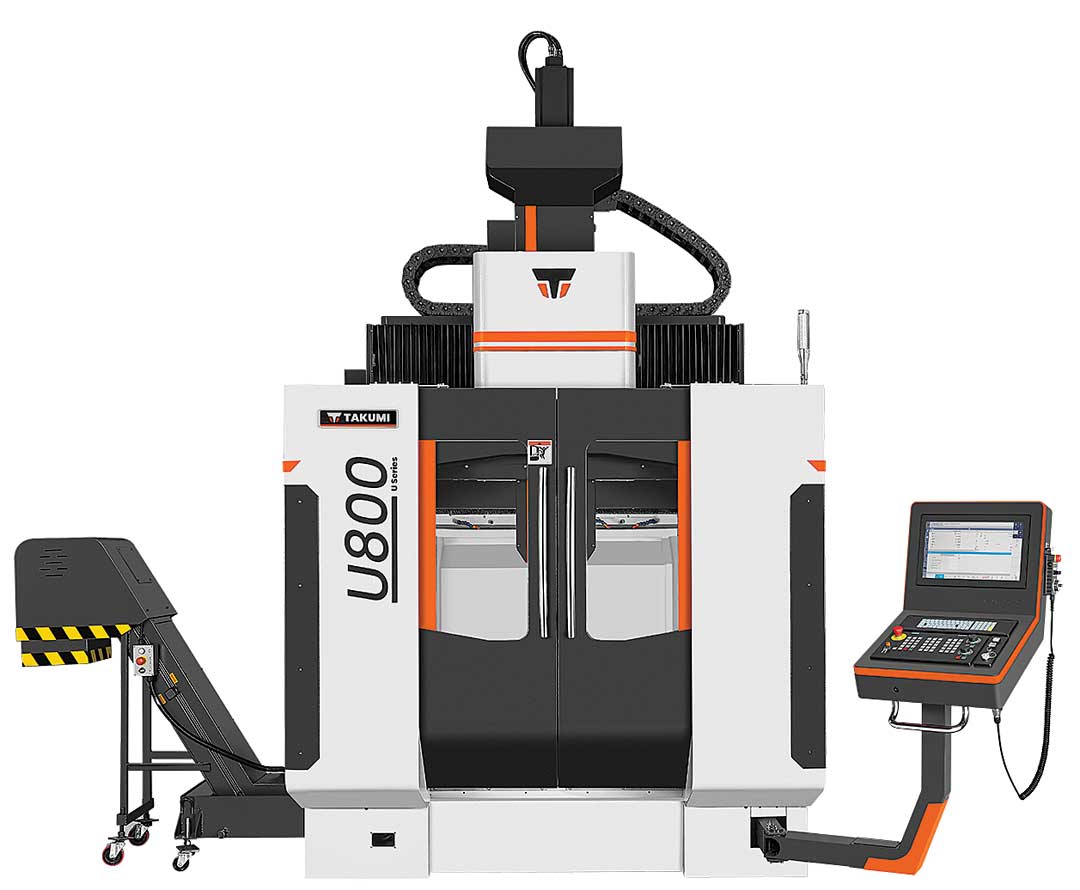

Takumi will be showcasing the capabilities of the latest generation of its U800 5-axis machining center at IMTS 2026 booth 338319.
"Featuring a rigid True Gantry design and 20,000-RPM HSK-63A spindle, the machine excels at achieving the demanding surface finishes common to die/mold, aerospace and medical applications," said a company spokesperson.
The newest iteration of the U800 incorporates a range of features designed to improve performance and ease-of-use. The machine's spindle now incorporates Takumi's iSpin III intelligent thermal compensation system to offset temperature-driven spindle growth and variations in ambient temperature. A Renishaw RMP400 high-accuracy probe simplifies set-ups and enhances process control. Additionally, the U800 now includes a 64-station automatic tool changer as standard, with a 96-station version available optionally.
"A one-piece casting and double-column design allow the 800U to achieve high cutting feeds while maintaining superior surface finishes," noted the spokesperson. "Roller-type linear ways provide a larger contact area compared to a ball-type design, supporting faster machine movements, greater rigidity and smoother linear motion. A contactless, magnetic direct drive on the A and C axes ensures zero backlash during 5-axis machining, allowing for flawless mirror finishes."
Especially suited for large components with complex geometries, the U800 accommodates workpieces to a maximum diameter of 45.3" (1,1150 mm) and height of 27.6" (700 mm).
The 800U is available with either a HEIDENHAIN TNC7 with a 24" LCD or Siemens SINUMERIK ONE NCU1760 with a 15" LCD.
For more information contact:
Takumi USA
7220 Winton Dr.
Indianapolis, IN 46268
844-302-3792
info@takumiusa.com
www.takumiusa.com
IMTS South Building, Level 3
Booth 338319
