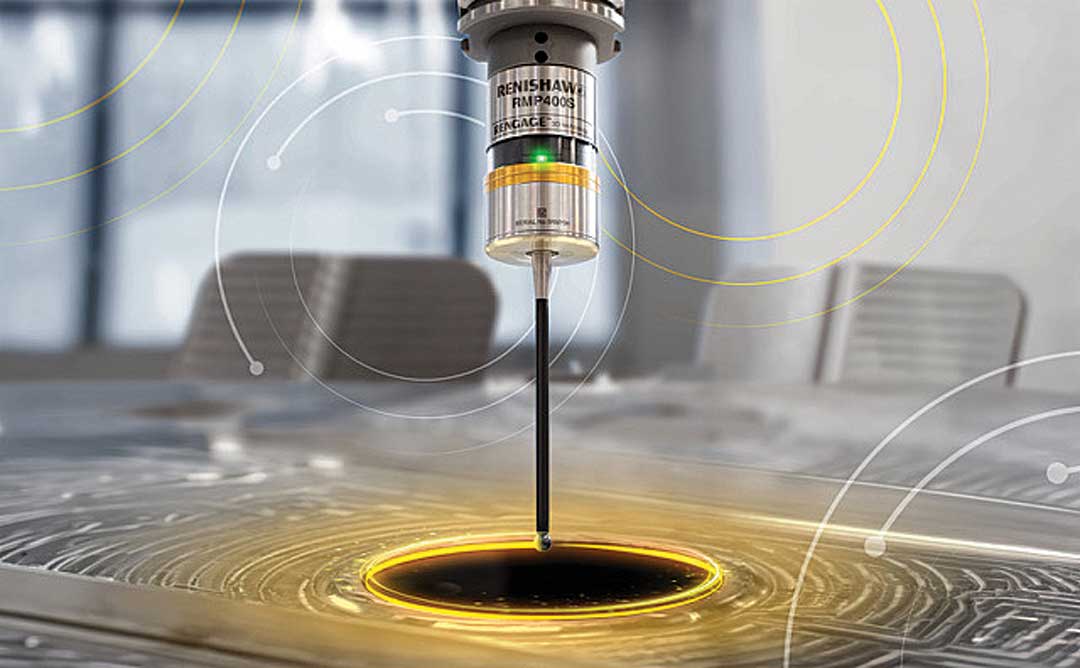

The new RMP400S utilizes Renishaw's patented RENGAGE technology, a strain gauge technology for high-accuracy probing that can achieve a repeatability of 0.25 µm 2 sigma and surface finish Ra of 0.5 µm.
Renishaw has introduced its multipurpose RMP400S, a solution that combines touch-trigger, scanning, and surface finish verification into a single machine tool probe.
The RMP400S utilizes Renishaw's patented RENGAGE technology, a strain gauge technology for high-accuracy probing, that can achieve a repeatability of 0.25 µm 2 sigma and surface finish Ra of 0.5 µm. Advancements to this technology allows for lower trigger forces, facilitates precise scanning measurements, and reduces part marking.
The RMP400S enhances on-machine measurement capabilities by delivering high-density scanning data for form and surface finish verification. Its advanced functionality supports improved in-process control directly on the machine, helping engineers streamline inspection workflows.
Justin Walford, Principal Product Marketing Engineer for Renishaw's Machine Tool Products Division, explained what this means for manufacturers: "High-density scanning provides users with comprehensive data for enhanced traceability and reliability in manufacturing. This includes run-out, form, flatness, roughness, and waviness measurements, and delivers precise and accurate measurements of the workpiece."
Walford continued, "Surface finish verification is also integrated into the RMP400S probe's scanning ability. This gives access to crucial information about part finish and helps to identify potential issues before they become problematic. For some applications such as bore/boss machining, the impressive capabilities of touch-trigger, scanning, and surface inspection can even be achieved with a single probe and stylus combination."
RMP400S is programmed with Renishaw's Inspection Plus software. Enhanced to include scanning, it provides a wide range of probing cycles. This allows RMP400S to act as a direct replacement for existing Renishaw touch-trigger probes.
Compatibility with Inspection Plus means that the RMP400S can also be programmed using Renishaw's Set and Inspect software. This enables simple programming through an intuitive user interface, without the need for extensive G-code knowledge. Inspection Plus also helps ensure compatibility with reporting tools including Renishaw Central-Renishaw's smart manufacturing data platform-allowing for continued use of existing reporting and workflow processes.
For more information contact:
Renishaw, Inc.
1001 Wesemann Dr.
West Dundee, IL 60118
847-286-9953
usa@renishaw.com
www.renishaw.com/rmp400s
