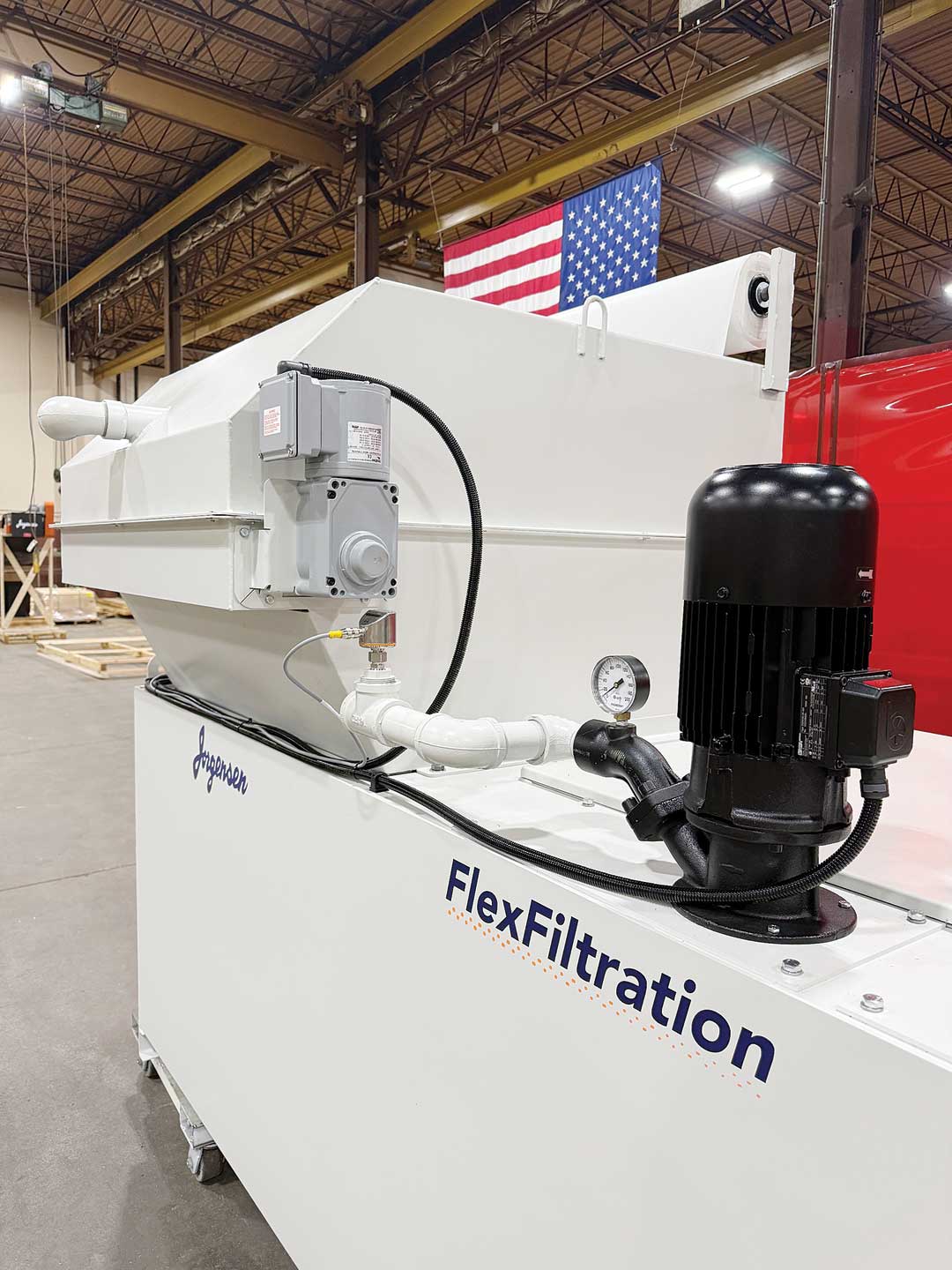

At IMTS 2026 in booth 338009, Jorgensen Conveyor and Filtration Solutions will highlight its expanded FlexFiltration coolant management systems that are designed to extend coolant life, enhance part finishes, and reduce maintenance procedures and costs. Jorgensen will feature two complete, fully automated systems that showcase compact modular designs with advanced customization for integration versatility in coolant filtration and monitoring.

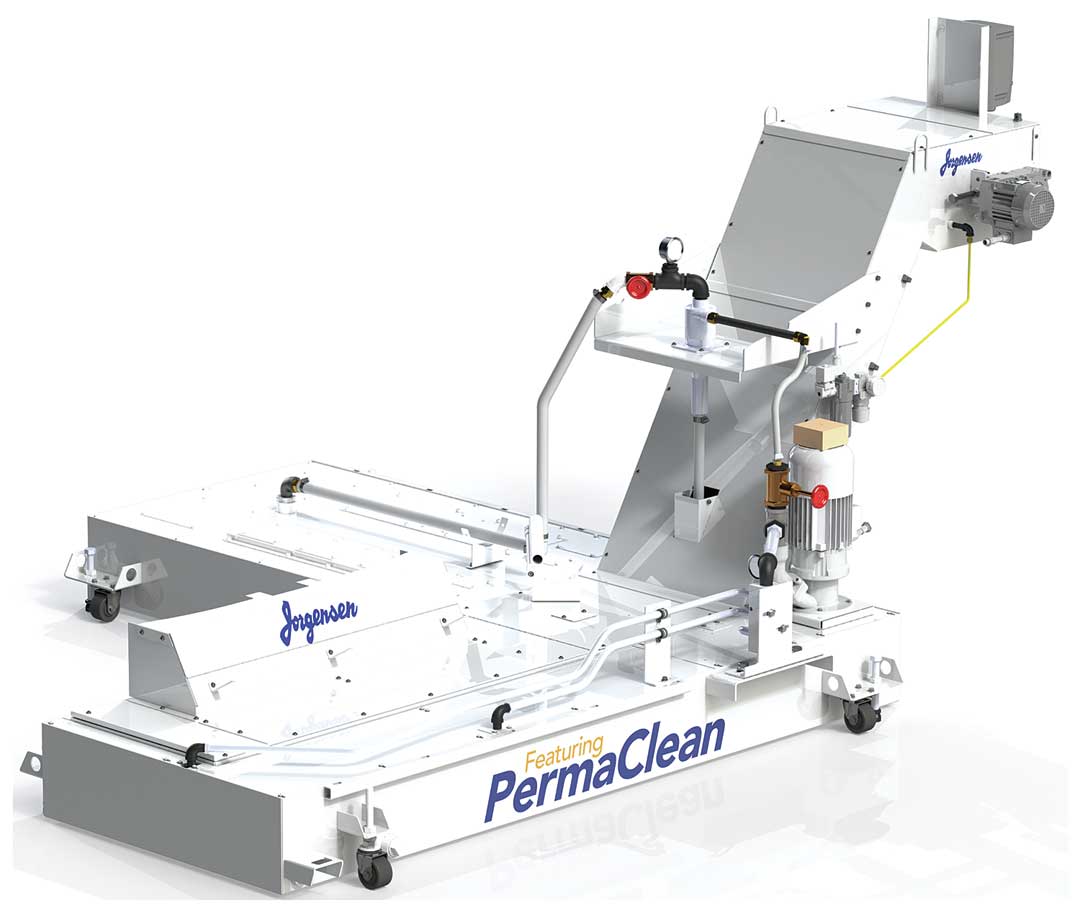

Designed to fit on a high-speed 5-axis CNC machine tool, the first system features a conveyor with an integrated coolant tank. This solution is sold directly through OEM machine tool builders and dealers. In this set-up, an integrated FlexFiltration tank maintains coolant clarity down to or below 10 microns with a chip conveyor, filter media, and accessories. The customizable system also features Jorgensen's PermaClean advanced filtration to eliminate sludge buildup in the coolant tank. PermaClean's consumables-free design paired with multistage cyclonic filtration eliminates noncut time for tank maintenance.
This set-up highlights the versatility of Jorgensen's compact, modular solutions for high-speed machining. A Jorgensen EcoFilter 80 conveyor handles primary chip separation at 80 microns with more than 97% efficiency. PermaClean eductor nozzles maintain coolant movement to suspend fines and prevent settling as coolant moves through a cyclonic filter and into the system's main tank. Maintenance-free secondary filtration within a Flex C Series cyclonic filter supports unattended machining. Depending on material type and coolant flow, users can choose to operate with either gravity or bag filtration. Once cleaned to 10-micron clarity, coolant proceeds into an ultra-clean tank before delivery back to the machine tool.
The entire system fits compactly under or next to a machine tool. High-pressure coolant options, including Jorgensen's advanced Flexforce through-spindle coolant system, address the cutting zone directly to break the heat-generated vapor barrier between cutting tool and workpiece for precision cuts with faster feeds and speeds.

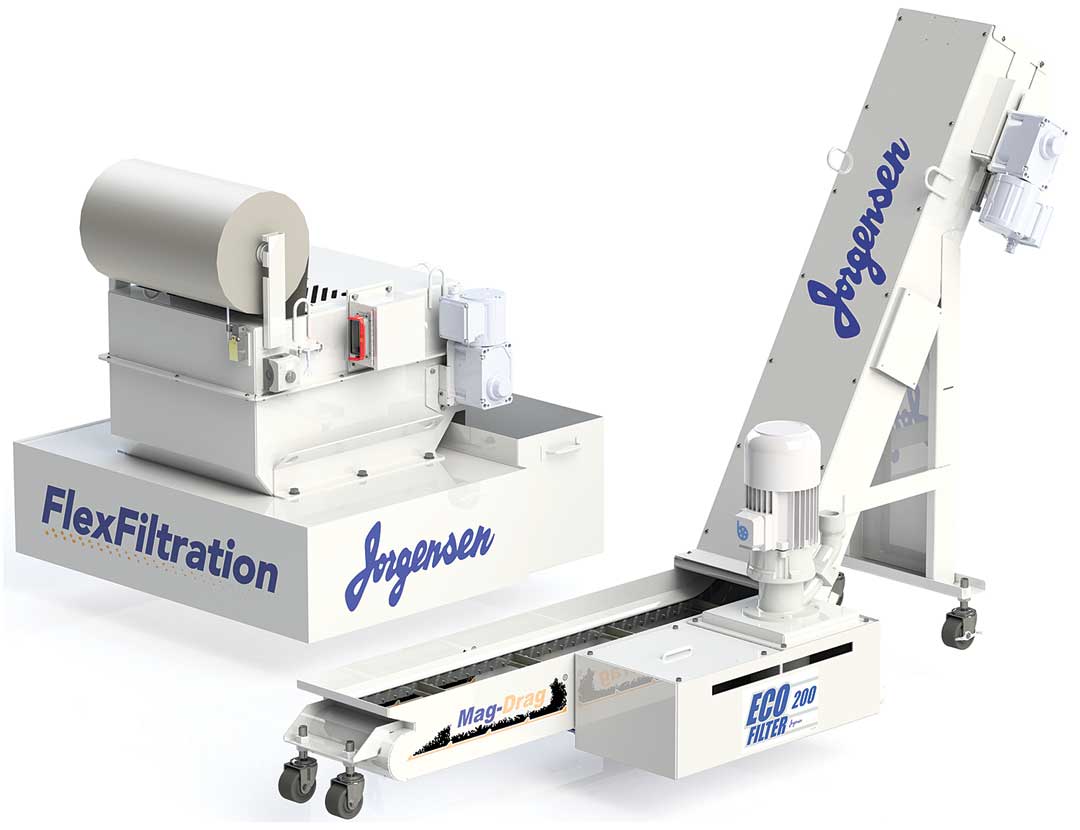

Additionally, attendees will see a gravity media coolant system designed for a grinding application. This system integrates FlexFiltration's Flex G line of gravity media with a Jorgensen Mag-Drag magnetic drag conveyor for ferrous-metal chip removal. In this compact design, coolant pumps from the machine tool to the filtration system. The customizable modular system provides the flexibility to address virtually any machining application.
The Mag-Drag conveyor incorporates powerful magnets below the conveyor's load and lower curve sections to attract and retain cast iron, steel, and other ferrous metal chips. Metal drag-flight cleats scrape chips and sludge up to the discharge. The efficient combination of Mag-Drag and EcoFilter manages challenging fines that compromise coolant integrity, extending the interval between tank cleanings and enhancing production quality.
At IMTS, Jorgensen will showcase its technology alongside Mass Finishing, Inc. and ALMCO, as providers of manufacturing technology under their parent company Innovance. Mass Finishing, Inc. offers industrial parts polishing and deburring machines, and ALMCO is a manufacturer of industrial parts washers, deburring, polishing, and tumbling equipment, and finishing supplies. Each of the three companies focuses on providing customers with innovative solutions, service and support.
For more information contact:
Jorgensen Conveyor and Filtration Solutions
10303 N Baehr Road
Mequon, WI 53092
262-242-3089
info@jorgensenconveyors.com
www.jorgensenconveyors.com
IMTS South Building, Level 3
Booth 338009
