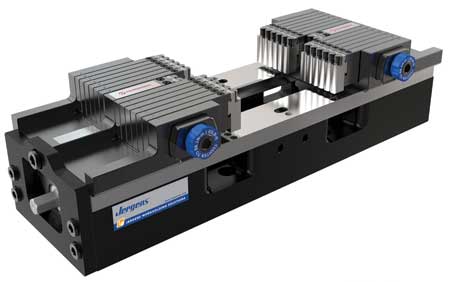

Jergens integrates Norgren's Adaptix jaw system (shown on a 6" production vise) quickly and securely grips atypical workpieces for precise and repeatable machining.
Jergens has partnered with Norgren to engineer the Adaptix vise jaw system within its line of production vises.
The design-which incorporates sliding fingers with replaceable studs and fingertips-clamps challenging workpieces quickly and securely for machining. With this, Adaptix is mounted to the vise body in place of standard jaws to accommodate part configurations, adapting to asymmetrical and other features quickly.
The high gripping force offers precision throughout the machining process. Once the lockable fingers have been adjusted to the workpiece, which takes only moments, remaining parts are clamped in and out quickly and with high repeatability, resulting in more uptime and tight tolerances. Because these shapes can be set up quickly, Adaptix is suited for high mix, low volume applications, including short production runs and prototyping. The moving parts of the jaws-fingers, studs and fingertips-have been engineered for thousands of actuations, and are also easily field serviced, if needed.
"Adaptix offers a productive solution where soft jaws leave off," said a company spokesperson. "Often a choice when holding workpieces with unusual features, soft jaws perform well, but require, among other things, longer time to set up. In some cases, that is upwards of two hours, whereas Adaptix requires an average of approximately 20 minutes and offers high accuracy and repeatability. Additionally, this flexible system reduces the need for multiple soft jaws, helping to lower overall tooling inventories and associated costs."
Adaptix is designed so fluids and chips will not interfere with operation. The system's studs are available in different materials, including aluminum and steel. Step profiles and other shapes provide gripping flexibility. The jaw system is compatible with industry vises such as Jergens 6" production vise. Packages with vise and jaws, or jaws only, are available.
For more information contact:
Jergens, Inc.
15700 S Waterloo Road
Cleveland, OH 44110
877-486-1454 / 216-486-5540
info@jergensinc.com
www.jergensinc.com
