Automated Tool Measuring
September 1, 2024
The new coraMeasure LG automated tool measurement system from ZOLLER will make its North American debut at IMTS 2024.
This system enables manufacturing companies to obtain precise measurement results consistently, achieve a high level of process reliability and increase productivity while also addressing workforce shortages.

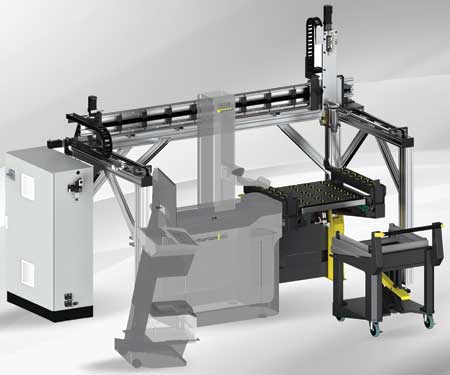

Developed to work with a ZOLLER venturion presetting and measuring machine, the coraMeasure LG system consists of several components, including the venturion, a linear robot, a pallet system with reject and buffer positions and a manual transport cart.
Tools are assembled in the pallet system before the linear robot removes the tools and loads them into the venturion for measuring. Each tool can be identified through the unique idChip system, and updated tool data is available in ZOLLER's database.
The coraMeasure LG system also integrates seamlessly with other ZOLLER automation and tool management solutions.
Flexible and easy to customize, the coraMeasure LG can be implemented as a brand-new system or retrofitted for an existing venturion machine. The system's compact, durable design requires less than 64 sq. ft. of shop floor space.
The system can accommodate tools weighing up to 22 lbs. and with lengths up to 23.6". It can be configured for HSK-A 100, HSK-A 63, SK40 and SK50 toolholders. Up to 24 HSK-A 63 and 20 HSK-A 100 tools fit on each of the tool pallets.
For more information contact:
Zoller Inc.
3900 Research Park Drive
Ann Arbor, MI 48108
734-887-0479
sales@zoller-usa.com
www.zoller.info/us
IMTS West Building, Level 3
Booth 432018
