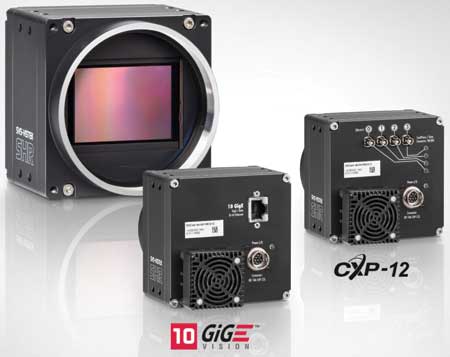

Leveraging a 127.6-megapixel (13,392 x 9528 pixel) CMOS sensor, the SVS-Vistek shr661 camera acquires full resolution images at speeds up to 20.3 frames-per-second (FPS) when conducting detail-demanding industrial inspection of wafers, flat panels and solar panels, as well as nonindustrial optical tasks such as geo-mapping, film making and life sciences.
Available in color and monochrome models, the SVS-Vistek shr661 industrial camera is built on an IMX661 sensor from the Sony Pregius series featuring a large pixel structure of 3.45 x 3.45 µm and backlight technology, enabling high sensitivity and above-average noise behavior. Despite an oversized sensor, the camera features a compact, integration-friendly housing measuring 80 mm x 80 mm x 83 mm. An IP30 metal enclosure with thermally optimized cooling protects internal electronics from harsh industrial environments in an extended temperature range of -10 °C to 45 °C.
Multiple inputs and four power-out outputs support precise triggering as well as sequencers and logical operators, while a built-in strobe controller can drive LED lighting directly, thus eliminating the need to purchase and integrate a separate controller, the company reported. Plus, the standard M72 lens (FFD 19.55) thread allows the shr661 to be used with a wider selection of lenses and adapter rings. GenICam with GenTL simplifies integration into all major machine vision software packages.
Most sensors with 100 megapixels or more deploy a rolling shutter that reads out pixels one after the other, leading to image distortion and artifacts. To resolve this issue, SVS-Vistek incorporates an advanced global shutter so the shr661 can accurately capture fast moving objects, such as items on a conveyor.
"Unlike rolling shutters, global shutters guarantee that all pixels are exposed at exactly the same time," said a company spokesperson. "As a result, global shutters help to eliminate distortions caused by object movement."
High-speed imaging at resolutions of 127.6 MP requires powerful interfaces for data transport. The shr661 has a four-lane CoaXPress-12 interface to transfer images to a frame grabber at up to 50 GB/second. The camera is also available with a fast 10 GigE interface transmitting 9 FPS directly to the PC, plus an option for PoE.
For more information contact:
SVS-Vistek Inc.
4400 State Hwy. 121 Ste. 304
Lewisville, TX 75056
800-935-6593
info-usa@svs-vistek.com
www.svs-vistek.com
