Live Chuck Mandrel Avoids Center Hole Problems
January 1, 2020
Center holes on roll journals often take a beating during the installation process in a mill or printing plant. Depending on the repair process, refurbished rolls can end up with journals that are misaligned with the center holes making future repairs problematic. Finding the true centerline on a roll with a damaged or misaligned center hole can be very difficult and time-consuming.

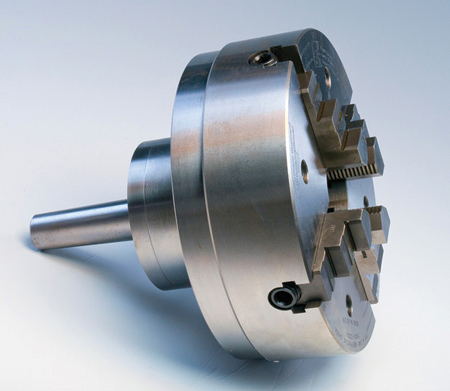

The Live Chuck Mandrel from Riten Industries solves this problem by chucking on the bearing journals of the part. The design features a "quick-true" system which makes it easy to locate the roll on the machine's centerline through simple touch-off indication. Compared with live center-supported rolls, users report improved part quality and throughput increases up to 25%.
Typical models feature an extra heavy duty bearing assembly coupled with any flat back chuck, including jaw chucks, compensating chucks and magnetic chucks. Standard Morse tapers and chuck sizes from 6" to 18" are available. Other configurations can be custom engineered for unique applications.
For more information contact:
Riten Industries, Inc.
1100 Lakeview Ave.
Washington Court House, OH 43160
800-338-0027 / 740-335-5353
www.riten.com
