5th Axis Indexing System
January 1, 2020

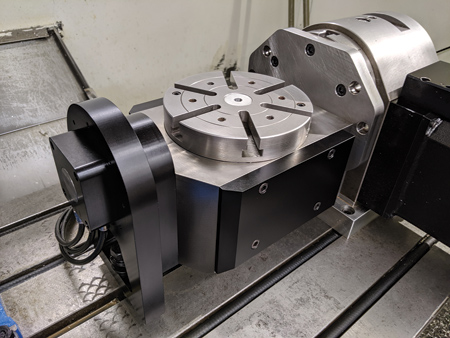

For 5-sided machining applications, Index Designs has introduced the QUINDEX 5th axis indexing system. The patent pending QUINDEX system is designed to quickly bolt to any existing 4th-axis rotary table, allowing cutting tools to access 5 sides of a part, all in one set-up.
"The QUINDEX is designed to reduce part handling, and the number of set-ups, while improving part accuracy and substantially increasing profit margins," said a company spokesperson. "With a QUINDEX, there is no need for expensive and complicated 5th-axis rotary table integrations and interfaces. You do not need a 5th axis capable machine, just mount the QUINDEX to a 4th-axis rotary table and connect standard shop air." A 90° index is triggered by an M-code written within the program of a CNC machine. The simple design utilizes a powerful rotary actuator that drives the 6.75" diameter spindle up against hard stops for accurate positioning with 5 arc-seconds of repeatability and a pneumatic brake plate provides up to 250 ft./lbs. of holding torque to absorb heavy cuts. And for worry-free dependability, there are no expensive servo motors, encoders, wiring or gears to ever repair or replace.
Do not have an existing 4th-axis to bolt the QUINDEX on to? Index Designs can provide a complete package for a machine. The total package includes the VH-6, 4th axis rotary table, the QUINDEX air driven head, including outboard support and air lines. All components are aligned and mounted on a subplate and can come as a true 4th axis or as a semi 4th axis when paired with the Index Designs programmable control box that can be activated automatically by a simple M-code. Another benefit: Index Designs' 4th and 5th axis QUINDEX packages give the flexibility to run the 4th-axis all by itself as a true or semi 4th axis or in a matter of minutes to bolt on the QUINDEX for 5-sided machining.
