Motorized Rotary Tables
January 1, 2020

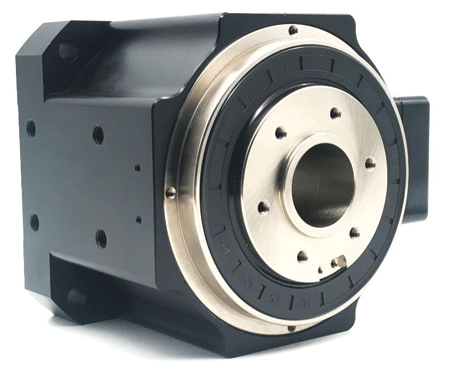

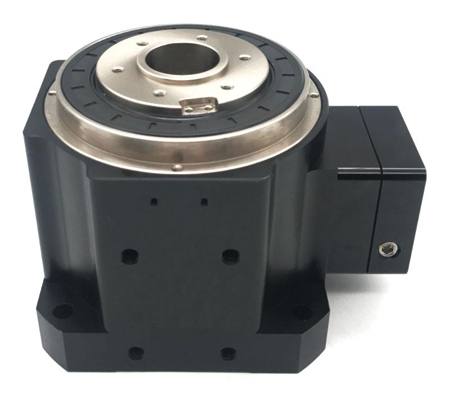

Intellidrives, Inc. offers its motorized rotary tables, RTSA/RTSH series, featuring the hollow shaft table integrated with a high rigidity cross-roller bearing. This structure is designed to improve permissible thrust load and moment load while maintaining high torque. The large diameter hollow hole (through-hole) helps reduce the complexity of wiring and piping, thus simplifying equipment design.
Equipment tables and arms can be installed directly on the output table.
This rotary table can be motorized with stepper or brushless servo motors with incremental or absolute encoders with matching drives and controllers.
Features include:
- Hollow shaft 100 mm
- Load capacity 500 kg
- Repeatable to 20 arc-sec
- IP65-IP67 rating
- Stepper or servo motor.
For more information contact:
Intellidrives, Inc.
8510 Bustleton Ave.
Philadelphia, PA 19152
215-728-6804
www.intellidrives.com
