Compact Box Way VMC
January 1, 2020

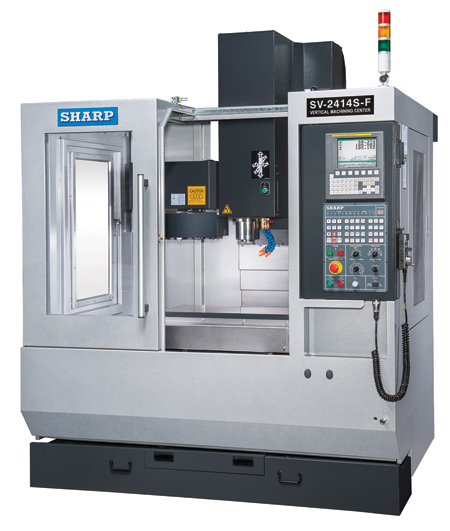

Model SV-2414A-F
Sharp Industries, Inc. has introduced its new compact box way vertical machining center (VMC) with small footprint.
The height can be lowered to fit through a garage door if needed. The machine is equipped with a FANUC Oi-MF control. Its full metal enclosure
has large removable side doors for easy access from the side. The spindle is equipped with air curtain, coolant flush holes, air blow holes in addition to three coolant nozzles from the side. The carousel tool changer is redesigned to prevent chips and coolant from entering the ATC. Fourth axis prepped, rigid tapping, coolant gun, air gun, remote MPG, pull out chip drawer, reserved air tank with alarm and electric heat exchanger are all standard items.
Features include:
- 24" x 14" x 18" travel, 27.6" x 13.8" table
- Hardened and ground box ways
- 8K RPM, CAT 40 BIG Plus, 15 HP spindle
- 16 tool redesigned carousel ATC
- Position accuracy: X/Y/Z +/- 0.0002"
- Repeatability: X/Y/Z +/- 0.00015"
- Machine weight - 5,500 lbs.
For more information contact:
Sharp Industries, Inc.
3501 Challenger Street
Torrance, CA 90503
310-926-3963
sales@sharp-industries.com
www.sharp-industries.com
