Robust High-Precision Machining Center



With high-quality spindles and components, Hwacheon's D2-5AX 5-axis machining center comes equipped for physically demanding and continuous use.

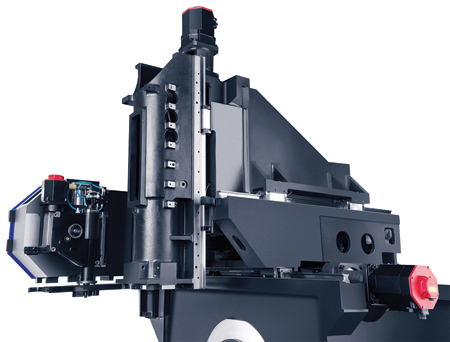

With high-quality components and oil-air lubrication as well as high drive power and acceleration values, the D2-5AX maintains enhanced accuracy and precision during operation.

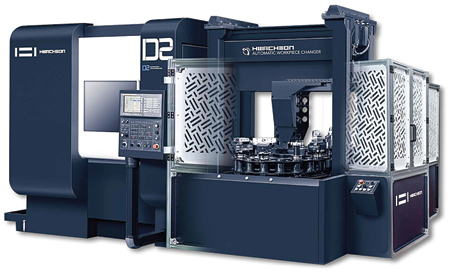

D2-5AX with the Hwacheon automatic workpiece changer.

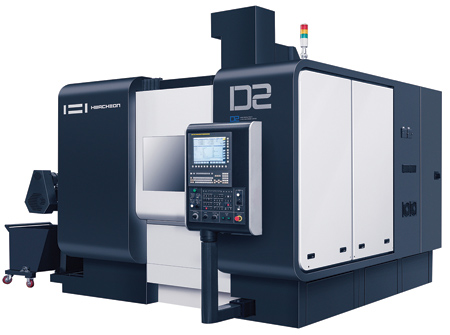

The compact and robust Hwacheon D2-5AX machining center is primarily designed for use in workshops, education and laboratories, as well as in the construction of tools, jigs and molds. With a machine bed weighing 10 tons, the D2-5AX is designed for stability even when used continuously for physically demanding tasks. "The user is able to ensure high accuracy and precision during production due to the high-quality components and Hwacheon's own oil-air lubricant, as well as high drive power with acceleration values of 0.7 G," said a company spokesperson.

The D2-5AX has a range of spindle options beginning with its standard 37 KW spindle of 12,000 RPM, all the way up to 24,000 RPM. The gantry-style constructed machining center is also equipped with a 600 mm diameter round table, providing an ergonomic working height of 950 mm. Up to all of the five axes can be controlled simultaneously and with adaptive feedrate control, overload control in the event of tool breakage and collision, as well as compensation for axis misalignment by means of a calibration sphere and measuring probe are all part of the standard equipment.

For production operations, the D2-5AX may also be customized with Hwacheon's automatic workpiece changer. Suitable for complex processes, the automatic workpiece changer is available as an 8-pallet option and 20-pallet option. The D2-5AX's large windows are fitted with safety glass, allowing optimal process observation. Temperature sensors on the spindle and the machine bed measure and compensate for thermal factors, permitting high precision. The exit of the chip conveyor can be positioned either to the left of the machine or behind it. And as an added option, a special chip conveyor for aluminum and other light metals is also available. This is fitted out with mesh hinges in order to allow the cooling lubricant adhering to the chips to drain away and re-enter the cooling cycle.

For more information contact:

Hwacheon Machinery America

555 Bond St.

Lincolnshire, IL 60069

847-573-0100

www.hwacheon.com
