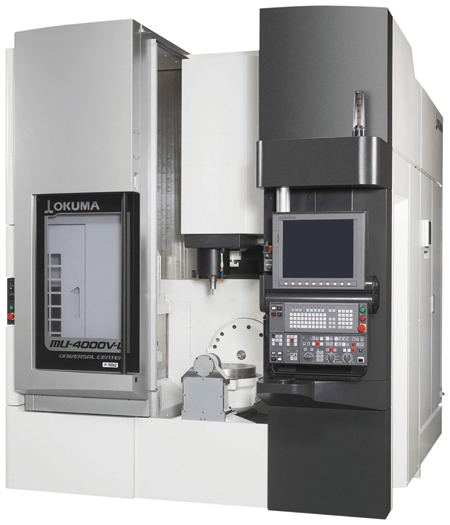

MU-V Series VMCs for Machining Complex Parts



Okuma's MU-V Series vertical machining centers (VMCs) are designed for 5-axis, multi-sided machining and suited for the aerospace and die/mold industries. They provide high speed, process intensive machining combined with turning and 5-axis multitasking machining in a compact footprint. The series includes the MU-4000V, 5000V, 6300V and 8000V.

These VMCs have enhanced machine mass and can handle complex and difficult-to-machine materials. The dual-driven, B-axis trunnion is fully supported, therefore eliminating overhang. Ball screw cooling is standard, and a highly rigid, left-right, mobile trunnion table, supports high precision and impressive cutting power. This workhorse is available with a broad scope of spindles ranging from 12K to 25K RPM, providing a configuration for nearly any 5-axis job.

Maximum productivity is achieved with a wide array of automation options. The unique machine design places the pallet changes at the back of the machines, allowing easy connection to a PALLETACE flexible manufacturing system, pallet pool, large capacity automatic tool changer (ATC) and robots. ATCs can be configured to meet growing demands with 32 to 64-tool chain magazine systems and 64-plus matrix tool cabinets.

The series can be equipped with Okuma's Super-NURBS function, enabling high feedrates and smooth finishes. Built using Okuma's Thermo-Friendly Concept, these 5-axis machining centers perform consistently from the first part to the last, regardless of warm up time or ambient temperatures. Standard 5-Axis Auto Tuning System technology automatically measures and compensates for up to 11 geometric errors to provide quick set-up and precision machining.

For more information contact:

Okuma America Corporation

11900 Westhall Drive

Charlotte, NC 28278

704-588-7000

www.okuma.com/mu-v-series-5-axis-mills

Southwest

S. TX, LA

Hartwig Houston

4727 S Pinemont, Ste. 100

Houston, TX 77041

713-749-9600

www.hartwiginc.com

N. TX

Hartwig Dallas

5234 Bear Creek Court

Irving, TX 75061

972-790-8200

www.hartwiginc.com

NM

Hartwig Colorado

8599 Prairie Trail Drive

Denver, CO 80112

303-373-9450

www.hartwiginc.com

OK

Hartwig Broken Arrow

1913 West Reno

Broken Arrow, OK 74012

918-259-0260

www.hartwiginc.com

AR

Morris South

350 Electronics Blvd.

Huntsville, AL 35824

256-461-8111

www.morrissouth.com

Southeast

NC, SC, GA, VA

Morris South

12428 Sam Neely Rd.

Charlotte, NC 28273

704-523-6008

www.morrissouth.com

FL

GOSIGER Southeast

2717 Rew Circle

Ocoee, FL 34761

407-656-1411

www.gosiger.com

MS, AL, TN

Morris South

350 Electronics Blvd.

Huntsville, AL 35824

256-461-8111

www.morrissouth.com

Northeast

E. PA, MD, DE

GOSIGER Mid/Atlantic

322 Commerce Drive

Exton, PA 19341

610-524-7722

www.gosiger.com

W. NY, W. PA, WV

Morris Great Lakes

9151 Marshall Road

Cranberry Township, PA 16066

877-373-8906

www.morrisgreatlakes.com

CT, MA, ME, NH, VT, RI, N. NJ, E. NY

The Robert E. Morris Company

910 Day Hill Road

Windsor, CT 06095

860-687-3300

www.robertemorris.com

Midwest

WI, U.P. of MI

Morris Midwest

2323 Corporate Drive

Waukesha, WI 53189

414-586-0450

www.morrismidwest.com

N. IL

Morris Midwest

68 Congress Circle West

Roselle, IL 60172

630-351-1901

www.morrismidwest.com

MN, SD, ND, N.W. WI

Morris Midwest

8718 Monticello Lane

Maple Grove, MN 55369

763-424-5622

www.morrismidwest.com

S. IL, E. MO

Hartwig St. Louis

10617 Trenton Ave.

St. Louis, MO 63132

314-426-5300

www.hartwiginc.com

W. NE

Hartwig Colorado

8599 Prairie Trail Drive

Denver, CO 80112

303-373-9450

www.hartwiginc.com

W. KS

Hartwig Wichita

4959 South Lulu Ct.

Wichita, KS 67216

316-522-5500

www.hartwiginc.com

E. KS, W. MO, E. NE, W. IA

Hartwig Kansas City

6110 Deramus Ave.

Kansas City, MO 64120

816-231-1850

www.hartwiginc.com

MI (except U.P.)

Gosiger Michigan

14600 Keel St.

Plymouth, MI 48170

734-582-2100

www.gosiger.com

IN, W. KY

Gosiger Indiana

4627 Independence Square

Indianapolis, IN 46203

317-788-1501

www.gosiger.com

S. OH, E. KY

Gosiger Dayton

108 McDonough St.

Dayton, OH 45402

937-228-5174

www.gosiger.com

N. OH

Gosiger Cleveland

30600 Solon Industrial Pkwy

Solon, OH 44139

440-248-3111

www.gosiger.com

West

WA, OR, N. ID

Gosiger Northwest

21911 68th Avenue South

Kent, WA 98032

253-826-3921

www.gosiger.com

S. CA, N. NV

Gosiger West (Southern CA)

6400 Gateway Dr.

Cypress, CA 90630

714-446-7770

www.gosiger.com

N. CA

Gosiger West (Northern CA)

2033 Gateway Place

Suite 500

San Jose, CA 95110

925-371-2333

www.gosiger.com

CO, S. ID, MT, UT, WY

Hartwig Colorado

8599 Prairie Trail Drive

Denver, CO 80112

303-373-9450

www.hartwiginc.com

AZ, S. NV

Arizona CNC Equipment

1205 S. Park Lane

Suite 2

Tempe, AZ 85281

480-615-6353

www.arizonacnc.com
