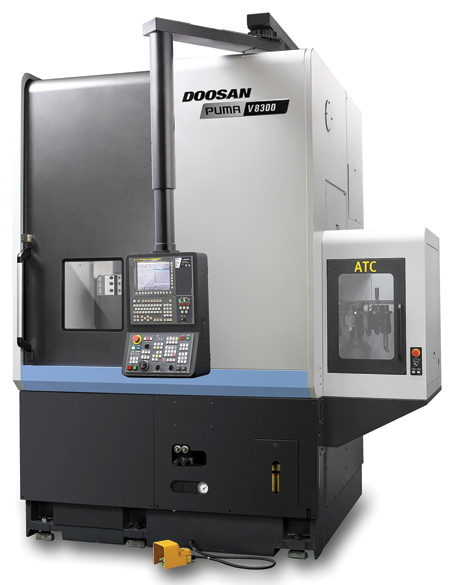

Doosan Machine Tools offers its PUMA V8300 vertical turning center (VTC) with an automatic tool changer (ATC). The PUMA V8300 is a new generation 15" class VTC with a larger work zone, increased rigidity and enhanced user convenience. It is available in right- or left-hand versions.
The PUMA V8300 offers the largest work zone in its class, with a maximum turning diameter of 830 mm (32.7"), a maximum work height of 750 mm (30") and a swing-over-saddle of 740 mm (29").
The adoption of a standard 37 kW (50 HP) high power spindle motor and a column integral-type box guide structure provide heavy duty, stable, dependable turning performance. The high-reliability, servo-driven turret maintains high accuracy during long-term machining. The PUMA V8300 has a maximum spindle speed of 2,000 RPM and maximum torque of 2,592 Nm (1,912 ft-lbs).
The PUMA V8300 comes with an optional 12-station ATC magazine. The ATC supports Capto C6 tooling and is available for all 12 stations of the turret. The tools remain safely out of the way when not in use, providing enhanced tool management and easier maintenance.
The PUMA V8300 series is designed with a slanted bed and an improved flushing function for unhindered chip disposal, and expanded coolant system features a 290-liter (77-gallon) tank. It also has an ergonomically designed operation panel that swivels and is height-adjustable and movable for enhanced user convenience.
"We set out to design a new VTC with the features and benefits our aerospace, automotive and energy customers were asking for," said Jim Shiner, Director of Sales and Marketing at Doosan Machine Tools America. "These characteristics make the PUMA V8300 particularly well suited for any operation with the need to cut tough materials swiftly and efficiently."
For more information contact:
Clarissa Goffinski, Marketing Manager
Doosan Machine Tools America
19A Chapin Road
Pine Brook, NJ 07058
973-618-2415
Clarissa.Goffinski@doosanmt.com
www.doosanmachinetools.com
