Model PAC Mega Bore Air Chucks

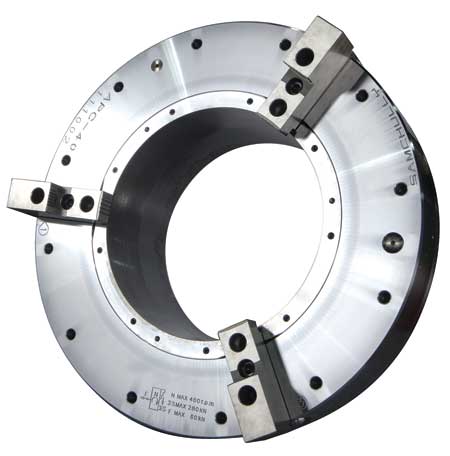

Samchully Workholding has introduced its series of Mega Bore Air Chucks, model PAC. These pneumatic power chucks are designed for the pipe threading industry and other applications requiring a large through hole. The Samchully Mega Bore air chucks range in size from 18.5" with a 7.5" through hole (PAC-470/191) to 39.3" with a 22" through hole (PAC-1000/560). The full range of Samchully Mega Bore PAC chucks includes through holes, in addition to the two sizes shown above, of 9" (230 mm), 10.8" (275 mm), 12.79" (325 mm) and 14.76" (375 mm). All of the PAC air chucks are extended stroke versions with total jaw strokes up to 1" (25.4 mm). Samchully Workholding offers full turnkey installation with trained, experienced technicians.

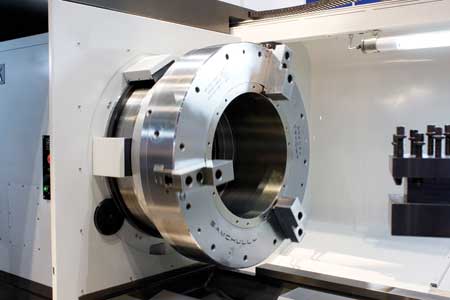

Samchully Workholding can offer PAC installations with a front mount or front and rear mount chucks. In addition to the power chucks, Samchully also offers a variety of Mega Bore manual scroll and independent chucks. The Mega Bore FTC series of heavy-duty scroll chucks offer through holes of 7.6" (FTC-535 21" chuck), 10.8" (FTC-610 24" chuck) and 14.76" (FTC-810 32" chuck). Samchully Workholding also offers a Mega Bore IC-24, 4-jaw independent chuck with a 12.59" through hole (320 mm).

These Samchully Mega Bore chucks can be mounted in a variety of combinations with power, scroll and independent on the front or rear of the spindle.

For more information contact:

Samchully Workholding, Inc.

18 Technology Drive, Ste. 107

Irvine, CA 92618

877-750-4747

info@samchullyworkholding.com

www.samchully.com/eng
