Video Demonstrates How Signal Conditioners Simplify LVDT Linear Position Calibration
February 1, 2015
Calibration is mandatory prior to sensor installation because it corrects any slight variances between sensors, helping to improve repeatability. "Traditionally, AC-operated LVDT sensors were difficult to calibrate because signal conditioners required that operators use trimmer pots," said a Macro Sensors spokesperson. "Modern signal conditioners, such as Macro Sensors EAZY-CAL series of LVDT Signal Conditioners, require a virtually effortless front panel fingertip routine for easy field calibrations.

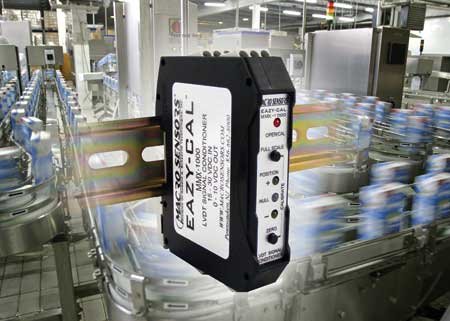

"The EAZY-CAL LVDT Signal Conditioners are designed to save time and money by eliminating the repetitive null and span potentiometer adjustments associated with conventional analog-based signal conditioners. Using two front panel push buttons, calibrations are accomplished digitally in seconds. An intuitive, sequencing four LED status indicator guides the operator through the calibration process and provides feedback to help insure calibration integrity."
Macro Sensors offers two series of EAZY-CAL Signal Conditioners:
- Offering both analog and RS485 outputs, the EAZY CAL LVC-4000 SIGNAL CONDITIONER is configurable with LVDTs, RVDTs and VR half bridge position sensors and can digitally communicate with up to 16 devices simultaneously.
- The EAZY CAL MMX is a single channel signal conditioner that operates on a nominal 15-30V DC power input and provides a low noise 0-10V DC output or 4-20 mA output.
For more information contact:
Macro Sensors
7300 US Route 130 North
Building 22
Pennsauken, NJ 08110-1541
856-662-8000
positionsensors@macrosensors.com
www.macrosensors.com
