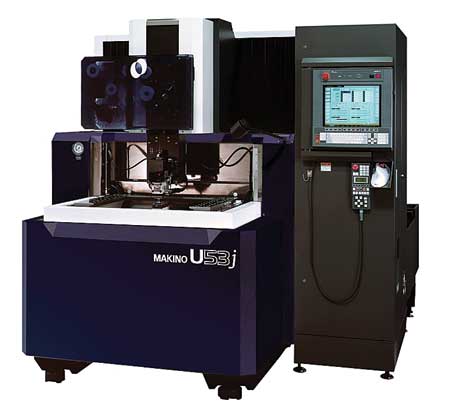

Makino has added the U53j, a new wire EDM machine, to its Uj-Series. This machine is targeted to precision plastic injection molds, precision stamping tooling, and medical and micro-manufacturing applications.
"The U53j is designed to enhance accuracy and finish capabilities, said Brian Pfluger, EDM Product Manager at Makino. "It produces geometric accuracies of plus or minus 0.0001 inches (0.003 mm) and surface finishes down to 1.3µRz / 0.13umRa / 5µinRa in tool steel and 0.9umRz / 0.09umRa / 3µinRa in carbide."
"These enhancements are achieved and maintained due to the mechanical accuracy and technology advancements built into each machine," said a company spokesperson. "Precision alignment of all components for straightness, squareness and perpendicularity are mechanically scraped to within 3~4 um during machine construction and assembly, which provides long-term sustained accuracies with minimal reliance on electronic compensation. The stacked cube design of the U53j eliminates any possibility of overhang of any cast units when the axes are run to their full travel limits, and the workpiece and worktable remain stationary. This design helps maintain straight, precise movement while eliminating droop as the axes move through their full travel." X- and Y-axis ballscrews are 32 mm, anchored at both ends and laser aligned to high-precision linear motion guides.
The U53j machine travels for the X-, Y- and Z-axes are 21.6" (550 mm), 14.6" (370 mm) and 8.7" (220 mm), respectively. The U53j can accommodate a maximum workpiece size of 37.8" x 27.2" x 8.7" (960 mm x 690 mm x 220 mm), with a maximum workpiece weight of 3,307 lbs (1,500 kg). "The U53j utilizes a programmable three-sided drop tank that offers good accessibility," said the spokesperson. "The drop tank system improves operator ergonomics and all aspects of workpiece loading/unloading, part set-ups, and machine maintenance access. The drop tank also simplifies automation and tooling requirements, as the tank drops below the work table height, allowing for open three-sided access."
The U53j's wire diameter range is 0.002 to 0.012" (0.050 to 0.300mm). Using an improved automatic wire threading system, the U53j performs automatic wire threading in 10 seconds in high-speed mode and 15 seconds in fine-hole mode. "The U53j comes standard with Makino's Split precision V guides, which provide a guaranteed guide life of 12,000 machining hours," said the spokesperson. "Also available are PICO precision wire guides, recommended for auto-threading holes smaller than 0.025 inches in diameter and/or with hole centers closer than 0.060 inches. PICO precision wire guides are also recommended for machining complex, variable land details in precision lead-frame stamping die work."
The U53j utilizes a compact and space-savings design that uses the entire base casting of the machine as the di-electric reservoir, which enhances thermal stability. The interior structure of the machine is also kept to the same temperature as the dielectric fluid by means of a radiator system, which is controlled by the standard dielectric fluid cooling unit. This non-variance in temperature reduces thermal distortion of machine components and the workpiece to provide high-accuracy machining. Moreover, the dielectric fluid cooling unit incorporates an inverter system to minimize the temperature difference between its on/off states. "The temperature is controlled with high accuracy to within plus or minus 0.1° C (0.18° F)," said the spokesperson.
