Large-Sized Precision Wire EDM Machine
February 1, 2015

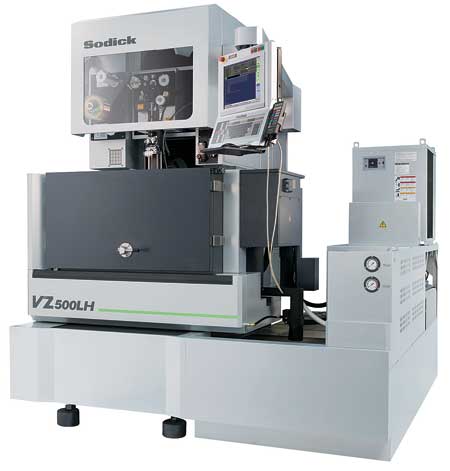

Sodick has released the VZ500LH, a wire EDM machine in the company's VZ series. According to the company, all VZ models have rigid linear motor drive technology as standard.
"The VZ500LH was created in response to the growing demand for large capacity wire EDM machines featuring extreme height capability," said a company spokesperson. "This type of machine is often suited for mold and die, aerospace and energy applications including parts such as turbine hubs, aerofoil vanes, instrument panels and mold cores."
The VZ500LH features a 17.2" Z-axis cutting capacity. Additional standard features include a Super-Jet high-speed automatic wire threader (AWT), wire-tip disposal unit, anti-electrolysis circuit and dielectric cooling unit (chiller).
"The control incorporates collision protection to prevent against operator error," said the spokesperson. This technology continuously monitors axis load. When voltage exceeds a pre-determined limit, the machine is designed to stop and give the operator an error message. With the rigid linear motor drive system, there is no mechanical connection between the rigid linear motor drives and the table.
The control also features automatic machining condition selection. This is a database within the machine that contains details on the best conditions for a particular wire diameter, workpiece material or workpiece thickness. "The operator can utilize the extensive conditions provided by Sodick or add their own conditions to suit unusual applications," said the spokesperson.
For more information contact:
Sodick Inc.
1605 N. Penny Lane
Schaumburg, IL 60173
847-310-9000
info@sodick.com
www.sodick.com
