Automatic Upcut Circular Saw
February 1, 2015

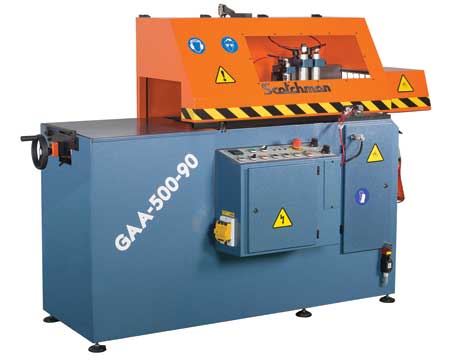

Scotchman Industries introduces the GAA-500 90, Automatic Upcut Circular Cold Saw, the newest addition to its non-ferrous saw line. The GAA-500 90 is a large capacity upcut automatic saw for cutting non-ferrous materials at 90° up to 6" square and round.
The saw uses a shuttle feed design with an adjustable vertical and horizontal clamp system to fit almost any profile. Standard features include a 7.5 HP motor that delivers a cutting speed of 3,000 RPM, pneumatic mist coolant system and a base designed with two chip extraction ports. Cut lengths are set by moving the hard stop that is connected to a ball screw and hand crank. The rotary dial allows for fast and easy length adjustments and part lengths are easily held to the length tolerance of +/- .006" per index. The GAA-500-90 is available in 230 volt and 460 volt configurations and is backed by Scotchman Industries' 3-year warranty.
For more information contact:
Jerry Kroetch, President
Scotchman Industries, Inc.
180 E. Hwy 14
P.O. Box 850
Philip, SD 57567
800-843-8844/ 605-859-2542
info@scotchman.com
www.scotchman.com
