Surface Finish Measurement for CMMs

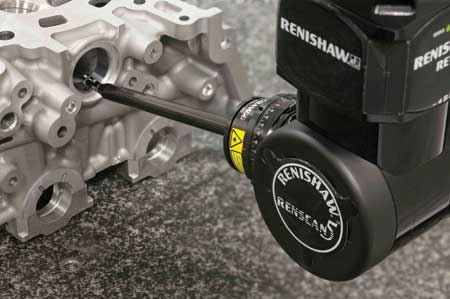

Renishaw's SFP1 probe option for the REVO 5-axis measurement system allows surface finish inspection to be fully integrated within coordinate measurement routines.

"With a measurement capability of 6.3 to 0.05 Ra, the SFP1 surface finish probe makes the CMM a single platform metrology system," said a company spokesperson. "It eliminates the need for hand-held surface measurement devices or transporting parts to a dedicated surface measuring machine, reducing labor costs and inspection lead times. The system allows automated switching between dimensional measurement and surface finish measurement, with the analysis contained in a single report."

The SFP1 probe is a fully integrated option for the REVO 5-axis measurement system, supplied with two dedicated styli, straight and cranked, which are selected via the measurement program control using the system's modular rack system (MRS). The probe incorporates a C-axis that, combined with the infinite positioning of the REVO head and choice of stylus holders, allows the probe tip to be automatically oriented to any angle to suit the part to help ensure that high quality surface data is acquired. This enables flexible access to component features, combined with the consistency of fully automated CNC control. Using the straight stylus, the SFP1 can perform a measurement trace within a 10 mm diameter bore to a depth of 100 mm.

A skidded probe with a 2 µm (0.000079") radius diamond stylus tip, the SFP1 probe outputs Ra, RMS and raw data formats to the metrology application software via Renishaw's UCCServer software using the I++ DME protocol. The raw data can subsequently be presented to specialized surface analysis software for more detailed reporting.

Calibration of the probe is also automated under the CMM program. A surface finish calibration artifact (SFA) is mounted on the MRS rack and is measured using the SFP1 probe. Software then adjusts parameters within the probe in accordance with the artifact's calibrated value.

For more information contact:

Renishaw Inc.

5277 Trillium Blvd

Hoffman Estates, IL 60192

847-286-9953

usa@renishaw.com

www.renishaw.com

WESTEC Booth #1600
