Turning Center Optimization

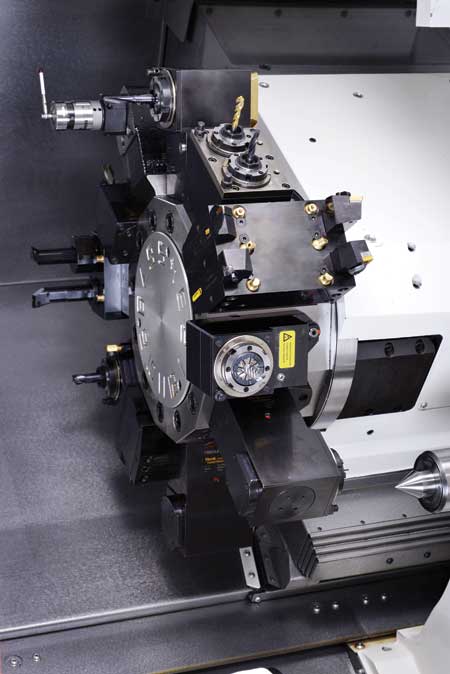

EXSYS Tools' Dual Collet Chucks double the amount of individual turret positions to increase a machine's tool storage capacity as well as expand its tooling versatility for different workpieces.

"EXSYS Tools, Inc. will showcase new innovations in high precision rotary and fixed tool holders that increase CNC turning center output. Visitors to Booth 1606 will learn how the company's cost-effective solutions, such as its Dual Collect Chuck Line, Gear Hobber System and PRECI-FLEX Adapter System, easily optimize and enhance machine tool performance," said a company spokesperson.

EXSYS recently expanded its Dual Collet Chuck line to accommodate all major brands of CNC turning machines, to maximize tool turret capacity. The chucks double the amount of individual turret positions to not only increase a machine's tool storage capacity, but also expand its tooling versatility for different workpieces.

The company's compact Gear Hobber System for horizontal turning centers allow shops to easily interchange the system's arbor for holding various sizes of slotting saws and gear hobbers. Arbor diameters are available for all standard sizes of slotting saws and gear hobs. Tool changes take just seconds by removing the yoke plate and sliding out the arbor. The base of the tool holder remains in its station.

Built for heavy machining loads, the Gear Hobbing System offers 45 Nm of torque and speeds of up to 3,000 RPM for hobs or slotting saws up to 2.480" in diameter. When used as a gear hobber, the system allows shops to generate splines, spur or helical gears in one operation. The adjustable system also eliminates having to rough gears on one machine, then transfer them to another for gear hobbing. Furthermore, because of its compact design, the system often operates without interrupting its neighboring tool stations in a machine turret.

"The PRECI-FLEX Adapter System for lathe tooling changeovers is the first tooling system on the market with a single-base holder and multiple tooling adapters that utilizes the ER collet pocket," said the spokesperson. The compact product ensures maximum torque transmission and rigidity. Additionally, the system's conical and flat face planar interface allows the use of either an adapter or a standard ER collet, and enables collets, endmill holders, expanding collet chucks and shrink-fit tooling to be mounted on a single-base holder.

Available in a range of sizes and styles, PRECI-FLEX provides unsurpassed repeatability, with every toolholder offering repeatability within three microns. The system allows tooling adapters to be interchanged between fixed and rotary base holders.

For more information contact:

EXSYS Tool, Inc.

11654 Corporate Lake Blvd.

San Antonio, FL 33576

800-397-9748

info@exsys-tool.com

www.exsys-tool.com

SOUTH-TEC Booth #1606
