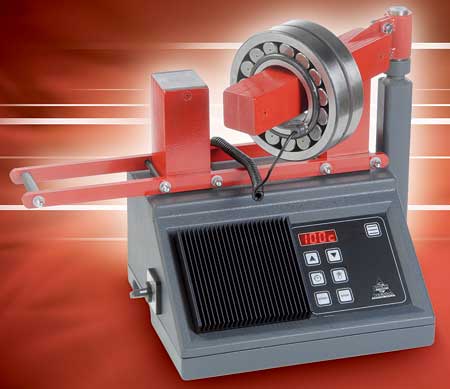

Standard Induction Heater Features a Swivel Arm



A new standard benchtop BETEX 22 ESD induction heater from Quality Bearings & Components (QBC) is designed for heating bearings, pulleys, couplings, rings and more so they can be easily mounted in maintenance (MRO) and/or production (OEM) applications.

The unit features a built-in LED display designed for ease of use, and digital electronics provide control during the heating process. The controller automatically regulates to provide the most efficient use of power to help ensure even and rapid heating. The BETEX 22 ESD is the smallest standard model of a range of 12 induction heaters in both standard and turbo types.

Identified as the TB-280620S, this 3.6 kVA benchtop heater will accept components with a minimum ID of 15 mm (.59") and a maximum OD of 340 mm (13.38"), plus a maximum width of 150 mm (5.91"). The maximum bearing weight of a component that can be heated is 40 kg (88 lbs). Various accessories are available.

For more information contact:

Quality Bearings & Components

2101 Jericho Turnpike

New Hyde Park, NY 11040-5416

888-276-4787

www.qbcbearings.com
