"Toolholding innovation will take center stage in the REGO-FIX booth 1832 at WESTEC. The company will present its new low-cost retrofit solution for the internal cooling of driven tools as well as showcase advanced tooling systems that bring precision, strength and ease of use to demanding part machining applications," said a company spokesperson.

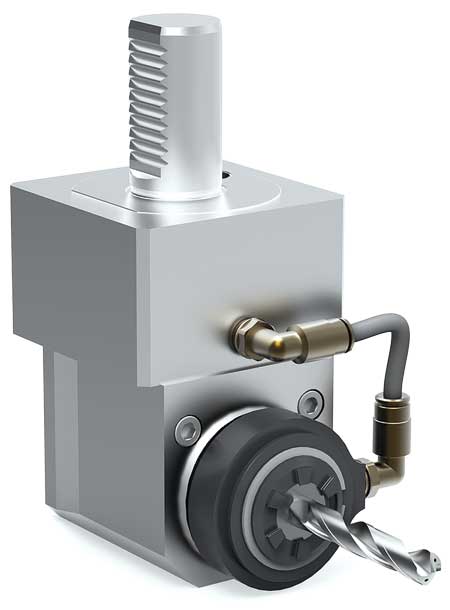

REGO-FIX's new reCool cooling system offers an affordable, low-maintenance solution for extending the tool life of milling cutters and drills. reCool allows manufacturers to retrofit their driven tools to be able to benefit from internal or peripheral cooling, which is much more effective in getting coolant to the cutting edge when compared to spray pipes or nozzles.
The advanced tooling systems WESTEC attendees will see inside the REGOFIX booth include the powRgrip toolholding collet system as well as the secuRgrip anti-pull system and slim-nose PG6 toolholder, which are both new options for powRgrip.

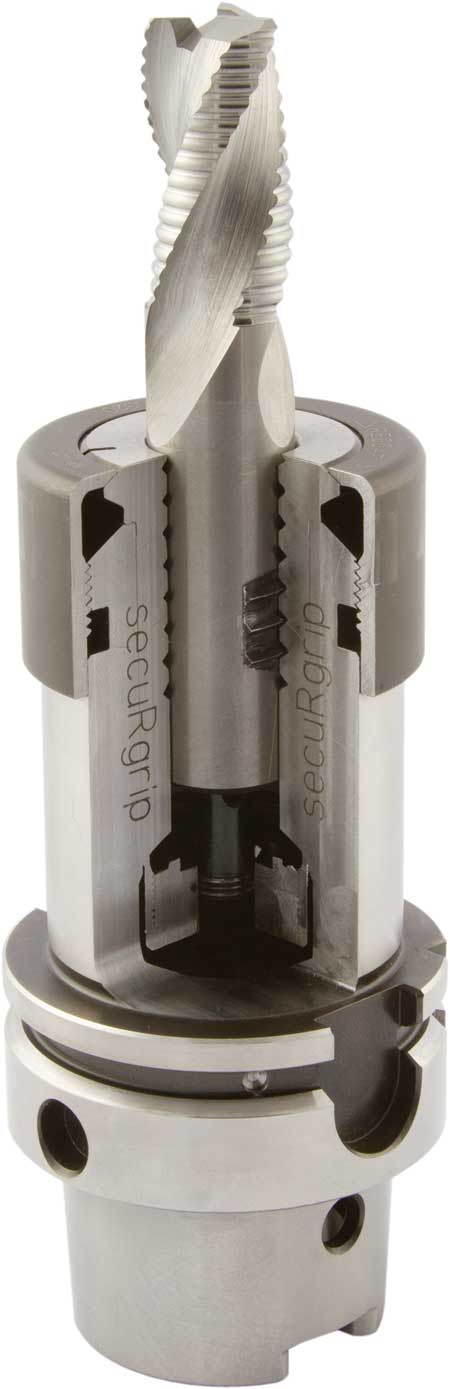

For added confidence when machining expensive, tough materials in high material-removal applications, REGO-FIX will demonstrate its secuRgrip anti-pullout system that locks in collets and cutters. This specially designed toolholder eliminates cutter slippage by providing tremendous gripping strength in conjunction with a patented locking key system and threaded cap.
secuRgrip does not require the purchase of expensive specially modified endmills, but rather makes use of existing standard carbide or HSS endmill designs. The standard ground notches found on most Weldon-type endmills readily accept secuRgrip's locking key insert for fast, easy assembly.
The secuRgrip system is applicable for use with REGO-FIX PG 25 or PG 32 holders in all tapers, including CAT, BT, TC, HSK, CAPTO and dual contact REGO PLUS. Licensed by BIG Daishowa, REGO PLUS products are compatible with all BIG PLUS spindles.
"Also on display will be the PG6 toolholder, which has a run-out accuracy of less than three microns and easily accesses tight, difficult-to-reach features in small complex parts," said a company spokesperson. As the smallest toolholder in the powRgrip product series, PG6 has a minimal outside diameter of 0.4" and a clamping diameter from 0.008" to 0.125". As a result, it provides less tool interference, machines tight pockets and delivers high levels of productivity.
"WESTEC attendees will experience REGO-FIX's new milling chucks designed to provide the least possible amount of run-out and highest possible gripping force available from a milling chuck. Ideal for roughing and finishing, the milling chucks provide concentricity of 0.0004 inch at 4 x diameter and can be reduced with sleeves for versatility to match the tool with the specific machining application at hand," said the spokesperson.
Helical internal slots and extra thick walls help ensure durability, long working lives and smooth clamping. Furthermore, the multi-seal design of the chucks helps keep dirt and debris out and seals the system for coolant through applications.
Milling chuck nuts seat positively against holder body bases to reduce the risk of over tightening and increase holder rigidity and stability. The roller bearing cages of the holders incorporate alternating patterns that distribute clamping forces evenly around cutting tools to ensure the best possible T.I.R. and system repeatability from clamp to clamp. Milling chucks work in CAT 40, CAT 50, BT-40 and HSK 63A spindles in sizes ranging from 0.75" to 1.25", while milling chuck sleeves accommodate tool diameters from 0.250" to 1.00".
For more information contact:
Bill Obras, VP, Sales
David McHenry, Product Engineer
REGO-FIX Tool Corp.
7752 Moller Rd.
Indianapolis, IN 46268
317-870-5959
800-REGO-FIX (800-734-6349)
info@rego-fix.com
www.rego-fix.com
WESTEC Booth #1832
