Mastercam X7 Mill is designed to provide expanded machining flexibility and an increased emphasis on speed and automation. According to the company, the new Mastercam Simulator, Renishaw Probing and Tool Manager combine with dozens of additional new enhancements in a package intended to improve shop floor productivity.

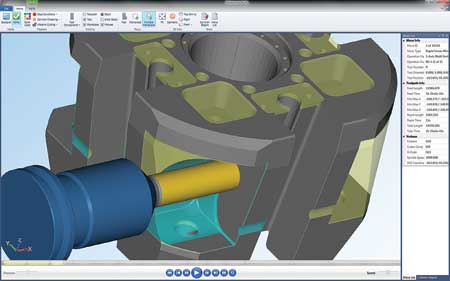

The Backplot and Verify utilities used to check Mastercam tool motion have now been combined to offer a more efficient workflow, better analysis tools and more comprehensive toolpath support in Mastercam Simulator. Users still access Backplot and Verify from buttons at the top of the Operations Manager, but these utilities now display results in a separate window from Mastercam. This allows users to keep making adjustments to toolpaths even as the tool motion display continues.
Mastercam X7 integrates Renishaw's Productivity+ for in-process gauging. It uses a measuring probe on a machine tool to determine fixture offsets, orientation and critical dimensions. "Probing eliminates the need for tool presetters, expensive fixtures and manual settings with dial indicators," said a company spokesperson. "It allows for machine offsets to be automatically adjusted during machining, further enhancing the manufacturing process."
Mastercam's new Tool Manager provides a new way to organize and create tooling. It has been designed as a flexible and efficient way to manage tools and tool holding components and to create tool assemblies that can be used in Mastercam.
According to the company, additional tools in Mastercam X7 Mill include:
- Dynamic and OptiRough toolpaths with more efficient tool motion, including enhanced cut orders and faster calculation times.
- Multi-threading support extended to most 2D high speed toolpaths, resulting in faster toolpath processing.
- Oscillate motion for Curve and Swarf 5-axis toolpaths, improving tool life by not always machining with the same area of the tool.
- 3D HST Hybrid toolpath improvements.
- New 3D HST Project toolpath now includes a full suite of high speed toolpath parameters to refine tool motion.
