Heavy-Duty 5th Axis Rotary Table
September 1, 2013

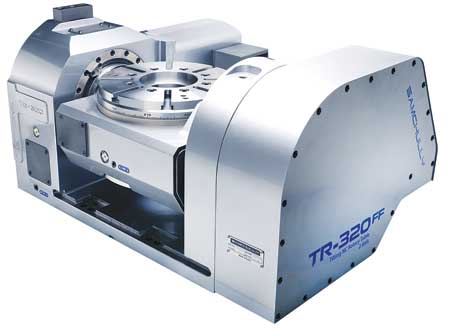

Samchully Workholding has introduced the TR-320FF heavy-duty 5th axis rotary table. The company reported that this high capacity 12" rotary table uses high torque motors for both the tilt and turn axes, giving this table a 330 lbs load capacity - 50% greater than the company's 10" size table.
Hydraulic brakes provide rigidity for heavy milling cuts and drilling. The included 12.5" faceplate with a 4"+ through hole, and optional 4 port rotary coupler, allows the TR-320FF to mount many different types of workholding and fixtures.
"The TR-320FF maintains a 25 RPM maximum spindle speed for the tilt and turn axes even with its high load capacity and heavy-duty motors, and it provides exceptional indexing and repeatability accuracy," said a company spokesperson. A 2-year warranty and factory installation are included.
For more information contact:
Samchully Workholding, Inc.
18 Technology Drive, Ste. 107
Irvine, CA 92618
877-750-4747
info@samchullyworkholding.com
www.samchully.com/eng
