Drawtube-free chuck has up to 4.5" dia. through-hole capacity and maximum 20,000 lbf gripping force.

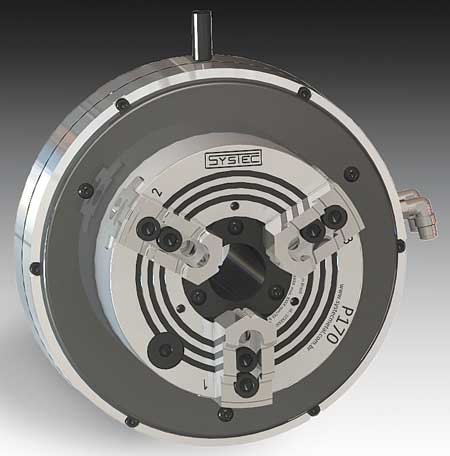

The Systec front-actuated pneumatically powered jaw chuck from Lexair is an automation upgrade for manual lathes, as well as rotary tables and indexers that require higher grip force for difficult applications. The self-contained air-open/air-close chucks are available in five sizes from approximately 5" to 12" inches. The drawtube-free design offers through-hole capacity up to 4.52", with more than 18,000 lbf grip force at 1,000 RPM for the largest size. Systec master-jaw/top-jaw chucks are available with inch or metric serrations in all sizes. Most sizes are available in two-, three- or four-jaw configurations, and the four-jaw design can be used as a two-jaw. Using an adapter plate, the chuck will fit A5 to A11 spindle faces.
The Systec chuck's non-rotating air manifold uses Teflon seals that are virtually maintenance free and help increase the grip force. The chuck operates with 90 PSI air pressure. Internal safety valves prevent loss of air pressure and gripping force.
The Systec chuck is designed to be rigid and durable, with a precision-ground body, fully hardened to 62HRc. It comes standard with a pair of hoses, mounting bolts and T-nuts. Accessories include spindle adapters, soft and hard-top jaws, grease gun, a manual directional-control valve and a dual foot-operated valve.
