Tailstock Force Gauge
September 1, 2013
"For many precision jobs using a face driver, it is critical to know the exact force applied to the workpiece by the hydraulic tailstock," said a Riten spokesperson. "Riten now allows users to eliminate any guesswork, especially on older machines."

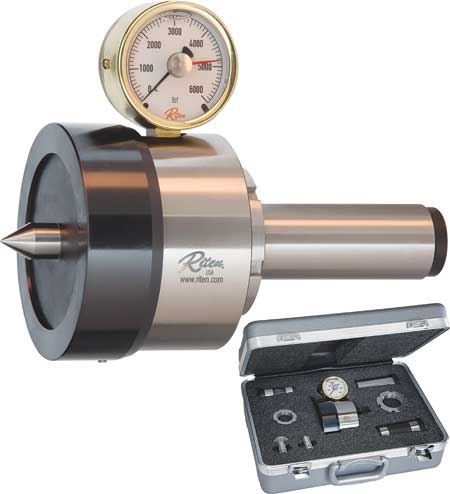

Riten's Force Gauge, when used in conjunction with the tailstock's hydraulic cylinder pressure reading, is designed to accurately calibrate the lathe or grinder to deliver the precise load for faster setup and repeatable, scrap-free production. The liquid-filled, anti-vibration analog gauge displays force from 200 to 6,000 lbs. and features dual indicators: the black needle shows actual force at any point in the test procedure, while the red needle becomes permanently set at the highest reading recorded during the period. Gauge accuracy is 1.5% full scale.
The gauge can be ordered as a complete kit or by specifying individual components. The kit includes the gauge assembly, 4 MT, 5 MT and 1-1/2 SS mounting shanks, a male and a bull nose point to accommodate different center hole diameters, and a lockable padded carrying case. Additional bull nose points are available, as well as specialized points and customized shanks. Riten can supply any configuration to fit the workpiece.
For more information contact:
Mitchell Kirby
VP Manufacturing
Riten Industries, Inc.
Washington Court House, OH
800-338-0027
m.kirby@riten.com
www.riten.com
