Turnkey 3D Laser Inspection Technology
September 1, 2013

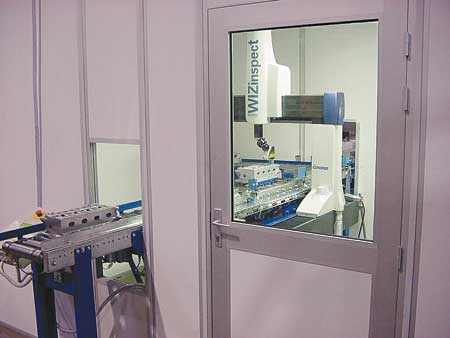

NEXTEC's WIZinspect 3D laser inspection system can be integrated with factory floor automation to provide an in-process turnkey solution where users can achieve up to 100% inspection of components, according to the company.
WIZinspect, a 3D multi-position laser inspection system from Nextec Laser Metrology, is designed to improve the quality control process with faster speed and higher precision while lowering cost and setup time. "WIZinspect can be integrated with factory floor automation to provide an in-process turnkey inspection solution where users can achieve 100% inspection of components, even in high productivity environments such as automotive and other high volume industries," said a company spokesperson.
"WIZinspect is based upon Nextec's vision and laser technologies featuring patented optics and image processing to deliver fast and accurate scanning and geometric measurements," said the spokesperson. "The large dynamic range and high accuracy of the probe makes it easy to set up the alignment loop and measurement paths to collect hundreds of points quickly and accurately. This WIZinspect solution provides a total system precision of less than 14 microns.
"With WIZinspect, a new part is easily programmed and set up in the system with the user-friendly soft keys software and the part CAD model. The WIZinspect system performs part alignment, inspects all required dimensions and delivers detailed reports of the measured dimensions plus success or failure output based on relevant part tolerances."
To accommodate varying part geometries and sizes, Nextec supplies a variety of 3-axis motion platforms and optional rotary tables.
For more information contact:
Nextec Laser Metrology LLC
34201 Melinz Parkway, Unit A
Eastlake, OH 44095
440-413-7605
www.nextec-laser.com
