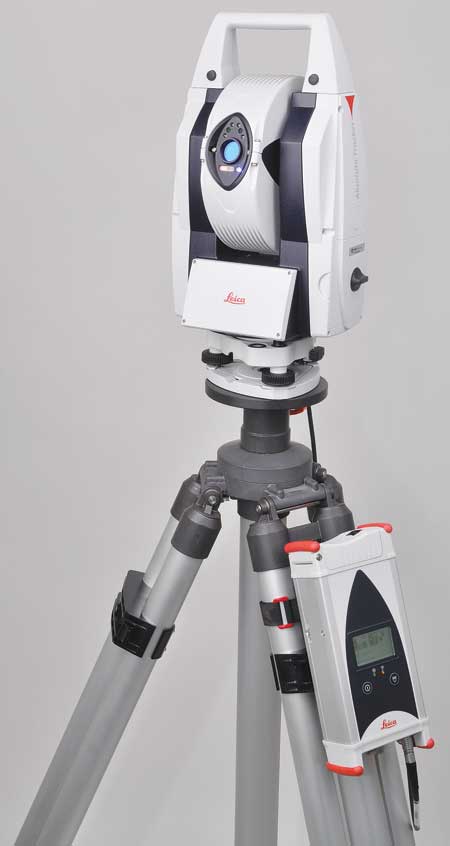

Hexagon Metrology has reported that its Leica AT402 is ideal for large volume, precision measurement applications performed by industries such aerospace, power generation, heavy equipment and other manufacturers that produce large components and assemblies.
"The portable 3D Absolute Tracker can be utilized for fully guided 3D measurement processes, as well as traditional inspection tasks," said a company spokesperson. "The new laser tracking system is optimized for ease of use, so operators can focus on the measurement task instead of complicated settings, such as the number of samples or measurement frequency.
"The Leica AT402 introduces a simplified user interface with four pre-defined measurement profiles that adjust the instrument settings to any measurement condition with the click of a button. In addition to its standard mode streamlined for daily operation, users can easily change settings for outdoor measurement jobs and for applications requiring exceptional speed or accuracy. The laser tracker's all-in-one design integrates other usability features, such as IR remote control, environmental monitoring and level to gravity, as well as standard features such as Leica PowerLock technology, a certified-IP54 rating and built-in WiFi connection for wireless operation."
The compact measurement system and its case weigh less than 33 lbs and can be used anywhere, inside or outside, due to its IP54 rating for ingress protection against dust and fluids often found in industrial environments. With a full eight hours of battery life, the tracker's hot swap batteries enable the operator to install fresh batteries without powering down the system.
The Leica AT402 comes standard with the exclusive Leica PowerLock technology, which automatically finds and locks onto any moving reflector within a field of view of one square meter at a five meter distance. "With endless telescope rotation, the AT402 can measure a full 360° horizon and a 290° vertical dome, resulting in more than twice the measuring volume of conventional trackers, including the ability to measure straight up, which no other tracker can do," said the spokesperson.
For more information contact:
Cathy Hayat
Marketing Specialist
Hexagon Metrology, Inc.
1558 Todd Farm Drive
Elgin, IL 60123
Direct: 847-214-5263
Main: 847-931-0100 Ext. 5263
cathy.hayat@hexagonmetrology.com
www.hexagonmetrology.us
