New Line of 4th and 5th Axis Rotary Tables

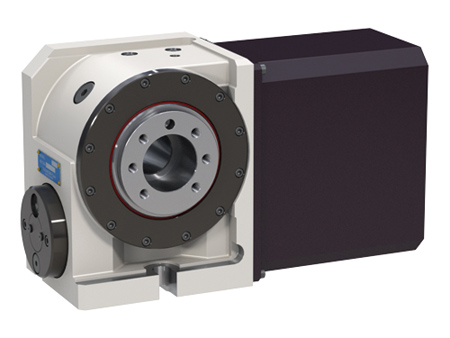

Tsudakoma RBS Series Rotary Tables

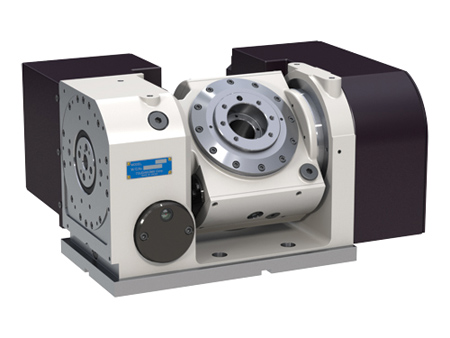

Tsudakoma TBS Series Rotary Tables

KOMA Precision, Inc. has introduced a new line of high accuracy, high rigidity, energy saving and zero maintenance rotary tables from Tsudakoma, a manufacturer of high-quality, precision rotary tables. The Rotary Ball System Series (RBS) is a 4th axis rotary table series suitable for single axis vertical machining centers (VMCs) and the Tilt Ball System Series (TBS) is a 5th axis rotary table series suitable for dual axis use on VMCs.

These rotary tables are built using the new ball drive system featuring advantages like zero backlash, improved cycle times, energy conservation and a lifetime adjustment-free transmission system.

Three new models are available for the RBS Series, with faceplate capacity of RBS-160 being 6.3" (160 mm), RBS-250 with 8.27" (210 mm) and RBS-320 with 10.04" (255 mm). The TBS Series is being introduced with TBS-130 and TBS-160 models. Both the RBS and TBS Series tables are highly rigid and have increased clamp torque delivered by the improved clamp system design. Various options such as chucks, tailstocks, support spindles and faceplates are available. Pneumatic and hydraulic rotary joints for automatic load and unload of the workpiece are also available.

The ball drive system technology features high speed indexing and zero backlash that result in shorter cycle times. This new technology is also designed to deliver high torque transmission efficiency.

For more information contact:

Koma Precision, Inc.

20 Thompson Road

East Windsor, CT 06088

800-249-KOMA (5662)

info@komaprecision.com

www.komaprecision.com
