Inspection Instrument for Indicators

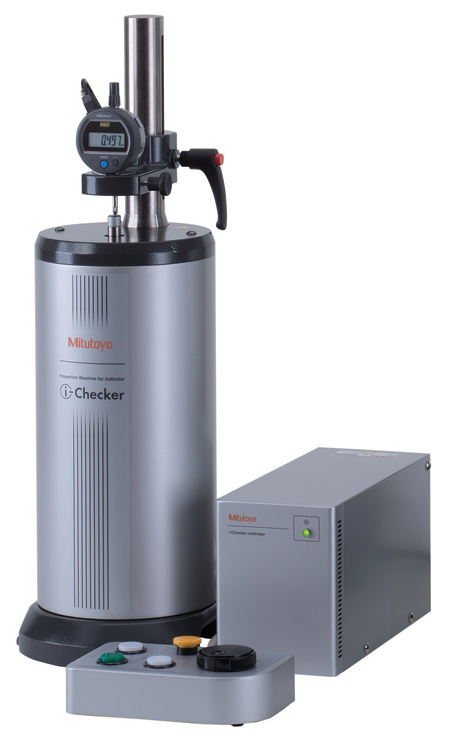

Mitutoyo America Corporation's i-Checker is an inspection instrument specially designed to calibrate a variety of indicators, including bore gauges, Digimatic indicators, dial indicators, dial test indicators and linear gauges.

The latest iteration of the i-Checker is at least two times more accurate than the previous model, achieving an accuracy level of (0.1+0.4L/100) µm. At 10 mm/s, speed also is improved two and a half times vs. the current model.

All functions necessary for inspection are combined in the control box, reducing operator fatigue. Adjustment of the measurement position is easily accomplished due to semi- and fully-automatic measurement functions, thereby reducing inspection time. Digital indicators equipped with a data output function are efficiently checked due to spindle positioning at the inspection points and measurement results are fully automatic. Operators can create and print simplified inspection certificates.

Hardware set-up is by plugging in a USB cable. The updated i-Pak software includes the most recent standards for ASME, ISO and JIS. Previous models can be upgraded with new software and controller.

For more information contact:

Mitutoyo America Corporation

965 Corporate Blvd.

Aurora, IL 60502

630-820-9666 / 888-648-8869

marketing@mitutoyo.com

www.mitutoyo.com
