New Measurement Capabilities with the Swift PRO Series

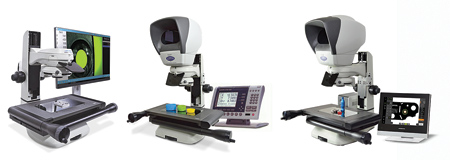

Vision Engineering's new Swift PRO series, left: Swift PRO Cam with M3, Swift PRO Elite with QC 200 and Swift PRO Duo with QC 3000

Vision Engineering has launched the Swift PRO series, non-contact measurement systems designed to deliver fast and accurate 2- and 3-axis measurements. The Swift PRO series includes Swift PRO Duo, Swift PRO Cam and Swift PRO Elite.

Based on Vision Engineering's Swift Family metrology products, the Swift PRO offers enhanced functionality and ease of use. The new range is available with optical, video or both optical and video measurement capabilities. All optical systems are built using Vision Engineering's patente, Dynascope technology, which gives operators an eyepiece-less and ergonomic viewing experience. The video systems are equipped with a high definition video camera and easy to use software. The Swift PRO is available with either an 8" x 4" (200 mm x 100 mm) or 6" x 4" (150 mm x 100 mm) measuring stage.

The new features built into the Swift PRO series include illumination enhancements, an integrated Z-axis tape encoder and a reduced number of system components and cabling.

Improvements to the illumination result in improved edge detection, especially for difficult to view components. The illumination of the Swift PRO series can now be controlled via the software, and the addition of iris control to the substage lighting provides even illumination across the field of view. The surface quadrant LED lighting is also controlled through the software. These key improvements give users greater control for both surface and substage lighting, delivering enhanced edge detection especially for difficult components.

Every Swift PRO stand is 3-axis measurement ready for the easy addition of a Z-axis encoder, which simply mounts into place through pre-drilled holes. This feature can be purchased as an upgrade kit for a Swift Pro system.

The overall design of the Swift PRO has been improved for ease of use. The power supply unit has the option for built-in Metlogix PCBs to support its M-Series software, eliminating the need for a separate Metlogix box.

"We are extremely excited to announce the Swift PRO. The features will provide users with advanced measurement capabilities while maintaining the simplicity and ease of use which made the Swift Family so successful," said Simon Cosham, Vision Engineering's North American Metrology Manager.

Similar to the Swift Family, the Swift PRO series requires minimal training and can be used by shift workers or advanced users. Ease of use increases repeatability among users, reduces operator errors and makes reporting stress free.

The Swift PRO comes with a choice of either Heidenhain's QC3000 embedded controller or Metlogix M-Series measuring software.

Swift PRO Duo

Swift PRO Duo is a non-contact measuring system, which incorporates both video and optical technologies, allowing for seamless switching between video and optical measurements. Dual technology increases accuracy, especially on materials with hard to detect edges.

Swift PRO Cam

Swift PRO Cam is an entry-level video measuring and inspection system. With its HD video camera and large measuring stage, the system operator can simply "place and measure" a wide range of precision parts.

Swift PRO Elite

Swift PRO Elite is a simple optical measuring microscope providing accurate measurements, even for difficult subjects such as black or transparent plastics. The patented optical viewer (head) clearly defines edges and offers enhanced resolution and true-color images.

For more information contact:

Vision Engineering Inc.

570 Danbury Road

New Milford, CT 06776

860-355-3776

info@visioneng.com

www.visioneng.us

The Quality Show Booth 1720
