Direct-Cooled Production Welding Head

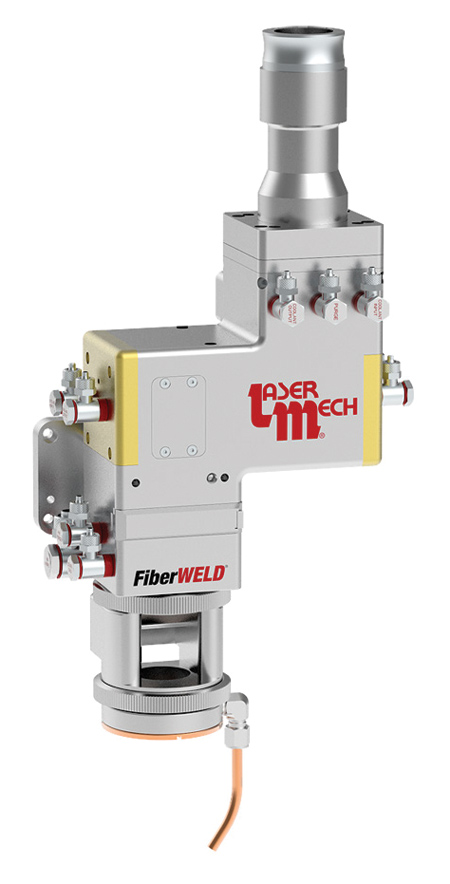

Laser Mechanisms offers its FiberWELD HR laser processing head. Engineered for high duty cycle production welding applications with medium to high power fiber-delivered lasers, FiberWELD HR is a robust head with direct-cooled reflective optics that minimize focus shift. FiberWELD HR's easily accessible protective cover glass helps extend the life of internal optics. Per the end user's processing requirements, FiberWELD HR can be configured with straight or right angle fiber input, camera viewing, wire feed, air knife, weld monitoring and special focusing optics (twin spot and rectangular).

The FiberWELD HR system consists of the welding head, fiber collimators from 100 - 200 mm, focusing optics from 200 - 1,000 mm and internal optics monitoring. The head has a clear aperture of 48 mm and works with all leading fiber-delivered laser systems up to 30 kW.

For more information contact:

Laser Mechanisms, Inc.

25325 Regency Drive

Novi, MI 48375
