Optimizer Container Dumper



Endura-Veyor, Inc. s offer benefits designed to address industry challenges commonly associated with hydraulic container dumpers, which include speed, messy hydraulic fluids, space constraints and overhead clearance limitations.

These hydraulic-free dumpers operate much quieter and significantly extend the horizontal reach to unload bulk and loose material into receiving equipment within a small footprint. A rotational design enables drums to rotate in a manner that evades overhead clearance interferences, even with higher discharge height requirements. Models are driven by dual oversized chains with built-in redundancy that provide extra strength, lifting power and increased reliability for various processing, handling, sorting, storage or receiving operations.

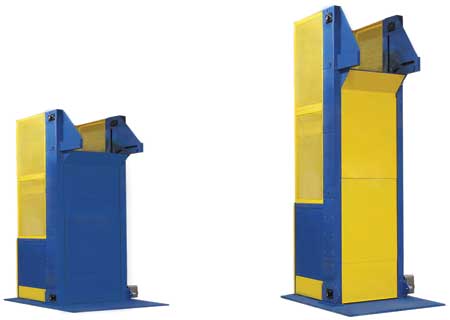

To fulfill a broad range of customer needs, Endura-Veyor has developed two model types: Optimizer and Hi-Lift Optimizer. Dump or discharge height requirements will primarily determine the model that will be best for each application. Optimizers reach dump heights of up to 102", while Hi-Lift Optimizers start dumping from heights of 9', can reach up to 20' and include a full height enclosure as an added safety measure. Hi-Lift Optimizers are designed to cycle up to 50% faster and lift various container types higher than hydraulic lift and dump models. In addition, these models can be built with multiple discharge height positions, allowing them to feed various pieces of equipment, which further increases achievable space savings and plant efficiency.

"Both models benefit from the innovative design that saves more floor space than traditional dumpers," said a company spokesperson. "A smaller footprint means more space for forklifts and pallet jacks to maneuver and load containers into our game-changing dumpers to efficiently feed downstream equipment that handle, sort, manufacture, process and produce across all industries."

The spokesperson continued, "Traditionally, in order to achieve specific discharge heights, tall drums are required-which is not the case with s. The patent pending design equips models with the ability to unload various types of containers while evading potential overhead clearance interferences. Both models can provide greater control that benefits certain applications like material metering, by slowing or stopping the rotating drum at any position during the dump cycle."

Being chain driven, hydraulic fluid, maintenance and contamination concerns are eliminated. While hydraulic-driven dumpers are known for their power, they require more overhead clearance in accordance with the lift. The Optimizer models' dual oversized chains have the necessary power as well as built-in redundancy, adding extra performance assurance when lifting and dumping various container types and sizes up to 2,000 lbs. These hydraulic-free dumpers operate quieter and extend the horizontal reach to shorten the gap between receiving equipment within a small footprint. These models are designed to more than double the horizontal discharge reach, as well as articulate and perform in tricky unloading conditions.

Standard controls for both model types include a PLC, an HMI screen or user-friendly push buttons, auto-lube chain and cycle tracking. Options include auto-run mode, maintenance suggestions and customizable advanced metering functionality. Available structural options include custom drum sizes, chutes and features of gated enclosures, light curtains, and swing, slide or lift doors.

For more information contact:

Endura-Veyor, Inc.

P.O. Box 205

Alpena, MI 49707

800-356-1593

sales@endura-veyor.com

www.endura-veyor.com
