High-Feed End Mill



FHFP N8

FHFP N5

FHFP N3

HF high-feed end mills

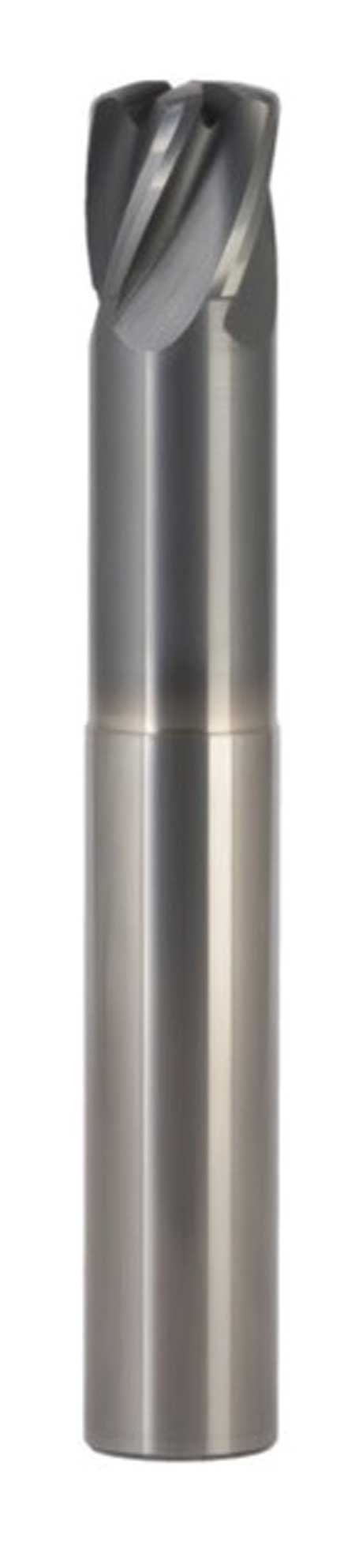

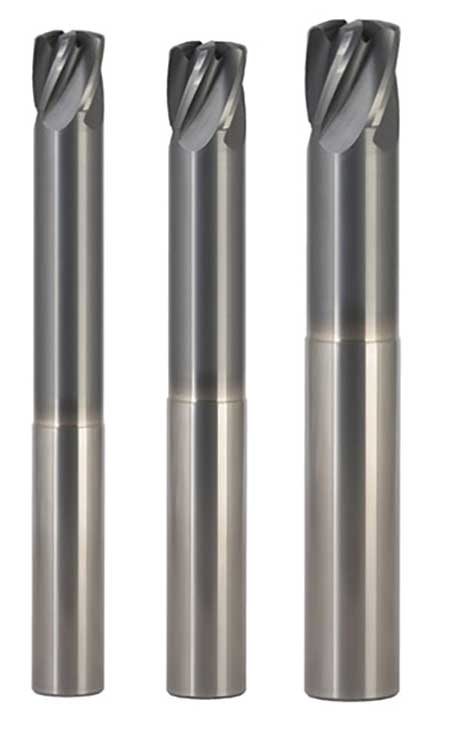

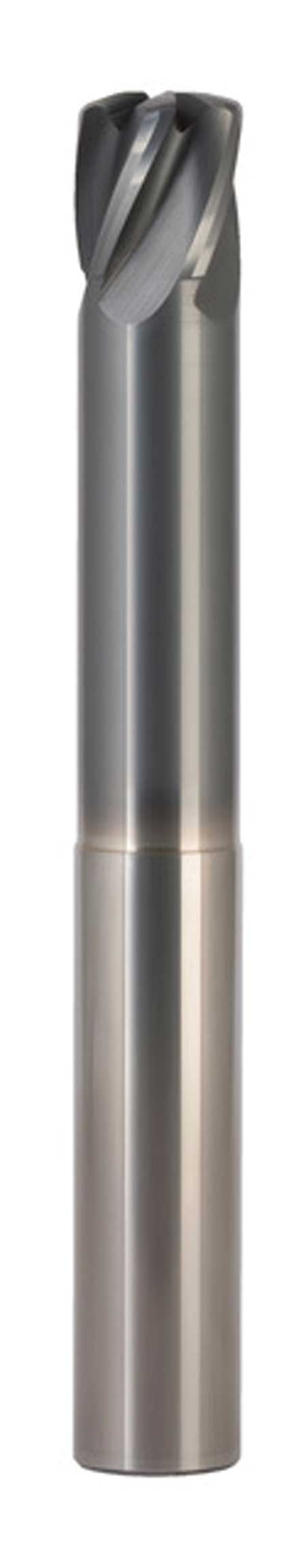

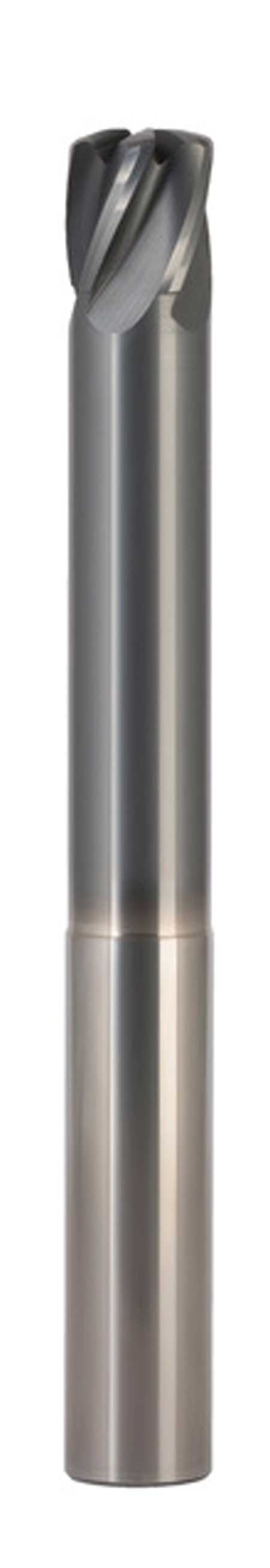

M.A. Ford has introduced the TuffCut HF high-feed end mill. This multiflute high performance mill is designed with a positive axial rake that allows this tool to perform well in a range of materials with a hardness of 52 HRC and under.

The FHFP is engineered with a rolled cutting face that provides increased strength and prolonged tool life, adding cost savings. With high metal removal roughing in 3D shapes, long reach applications into deep/tight pockets and slots, the FHFP is suited for a broad range of industries.

This series is offered in metric sizes from 6 mm diameter to 16 mm and multiple neck lengths from 3xD to 8xD. Coated with the company's ALtima Q coating, the FHFP has optimal heat and wear resistance for increased tool life. The central coolant design allows for excellent chip evacuation to prevent recutting of the chips along with the cutting geometry that thins the chip, which provides reduced cutting forces and heat adding to the life of the tool.

For more information contact:

M.A. Ford

7737 Northwest Blvd.

Davenport, IA 52806

800-553-8024 / 563-391-6220

sales@maford.com

www.maford.com
