Zero-Point Workholding System
June 1, 2024

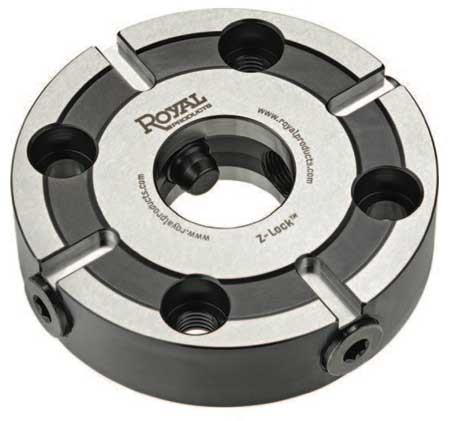

The Royal Z-Lock is a zero-point workholding system for vertical, horizontal and 5-axis machining centers.
A precision receiver mounts to a machining center table or 5-axis rotary table. Operators can mount workpieces to top plates offline, keeping spindles in the cut for maximum production. Top plates interchange in seconds with precision and repeatability.
"The Zero-Point workholding system features simple manual actuation," said the spokesperson. "A few turns of a hex key and it is locked, with no risk of the top plate loosening from vibration, spring wear or air/hydraulic failure. The Royal Z-Lock is also easy to implement-no external air or hydraulic lines to install."
The system offers precision repeatability of 0.0001", 0.0001" and 0.00005" (XYZ). It achieves up to 11,240 lbs. (50 kN) of clamping force, and a hardened locking screw contains a large, sturdy engagement surface for failsafe operation.
For more information contact:
Royal Products
200 Oser Ave.
Hauppauge, NY 11788
800-645-4174
info@royalproducts.com
www.royalproducts.com
