Full Grip Jaws Distribute Gripping Pressure Across the Workpiece
June 1, 2024

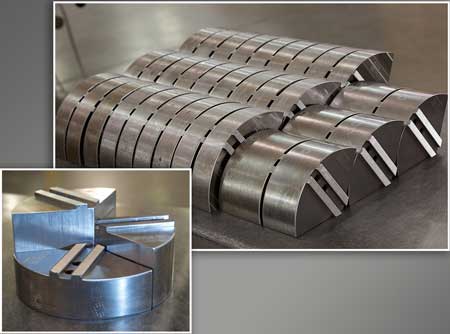

With maximum contact area for a solid gripping surface, Dillon full grip jaws provide more friction for drive with reduced part distortion. The company offers a comprehensive lineup of full grip jaws in standard and custom configurations to suit varied workholding applications.
Manufactured from 6061 aluminum, 1018 steel, cast iron and brass, Dillon full grip jaws will not mark or mar the workpiece surface. Standard sizes are available to 32" in diameter. Custom designs are available with special heights, diameters, materials and configuration to securely grip any workpiece, including a matching serration location that is exactly perpendicular to the slots. These special full grip jaws are engineered to reduce and simplify set-up times, enhancing project profitability.
Dillon full-grip chuck jaws are made in the USA and suited for high-speed machining, as well as precision boring, tapping, drilling and finishing across virtually all industrial markets.
These wrap-around type top jaws distribute more of the gripping pressure across the workpiece, reducing part distortion. Dillon standard and custom full-grip jaws are available in serrated, tongue & groove serrated, Acme serrated and square serrated designs.
For more information contact:
Dillon Manufacturing, Inc.
2115 Progress Drive
Springfield, OH 45505
800-428-1133
sales4@dillonmfg.com
www.dillonmfg.com
