Mill-Turn Lathe with a Full-Sized Counter Spindle

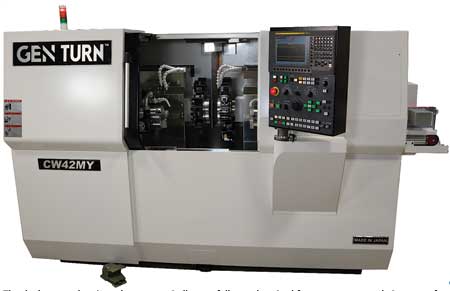

The new Japan made GEN TURN CW 42MY, from Expand Machinery, is a small footprint 8-axis mill-turn lathe with a full-sized counter spindle and features milling capability on all 24-tool stations.

A Y-axis is featured on both 12-station tool turrets for off centerline milling and drilling. This universal design allows the flexibility of both efficient chuck and bar work and is capable of providing a completed part in just one operation. Both 42 mm 1-5/8" bar and 52 mm 2" bar capacity versions are available. Both 6" and 8" chucks can also be used for workholding.

The machine uses the FANUC 0i-TF Plus or the Mitsubishi M830 control and features two fast bi-directional indexing 12-station tool turrets that use the outstanding rigid base mounted (BMT) tooling system.

"The BMT tooling provides for enhanced cutting stability and superior tool alignment characteristics over what other tooling systems provide," said a company spokesperson. "Internal and external tooling can be mixed on any tooling station for the ultimate in tooling set-up flexibility. The tool count can be easily increased using gang-style tooling by taking advantage of the Y-axis shift on both turrets."

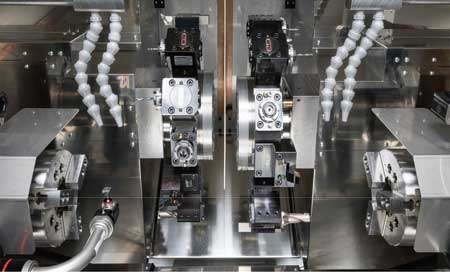

The dual opposed main and counter spindles are fully synchronized for an accurate workpiece transfer, even on irregular shaped machined surfaces. Both spindles feature a high-performance C-axis that provides 360,000 radial positions, as well as full contouring capability. Even machining 4-axis simultaneous contouring features on both spindles can be achieved. The radial spindle position is accurately secured during cutting by a powerful hydraulic disk brake. Twin Marposs tool setters are standard, and their use helps in reducing set-up time, assisting in overall production efficiency. The standard parts catcher utilizes a pick-off arm with twin-gripper fingers that gently places finished parts on the outbound parts conveyor belt for mark-free production, even on sensitive parts.

"Dual-wound FANUC motors with built-in spindles provide the maximum cutting torque without suffering the parasitic losses that belt-driven spindles create," said the spokesperson. "This design provides for a high rate of spindle acceleration and deceleration for reduced part cycle times. The counter spindle has coolant forced through the spindle and spindle air blast to clean the collet or chuck jaws to ensure an accurate and secure grip on the next workpiece. Multiple brands of dead-length collet chucks can be utilized for workholding on the machine.

See the GEN TURN CW 42MY in action at the Expand Machinery booth 338187 at IMTS in Chicago, along with eight additional machines that can help expand manufacturing capability. Expand Machinery offers a full range of CNC Swiss as well as a GEN MILL CNC milling machines, GEN TURN CNC machines and a full range of GANESH manual and CNC toolroom lathes and milling machines.

For more information contact:

Expand Machinery LLC

20869 Plummer St.

Chatsworth, CA 91311

888-542-6374 / 818-349-9166

sales@expandmachinery.com

www.expandmachinery.com

IMTS Booth 338187
