Twin Spindle VMC-Single Table Or Pallet Changer

"DMC's new line Twin Spindle VMCs (DVD-4300, 5200, 6500) with U-axis is designed to provide a cost and space saving solution for production machining, general machining and moldmaking markets. This is a multi-axis, twin spindle vertical machining center (VMC) with superior merits," said a CNC Systems spokesperson.

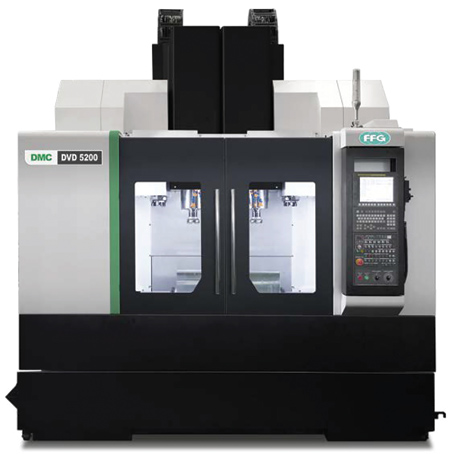

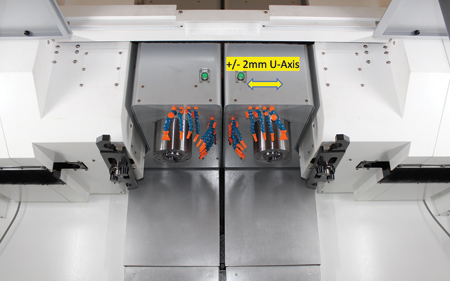

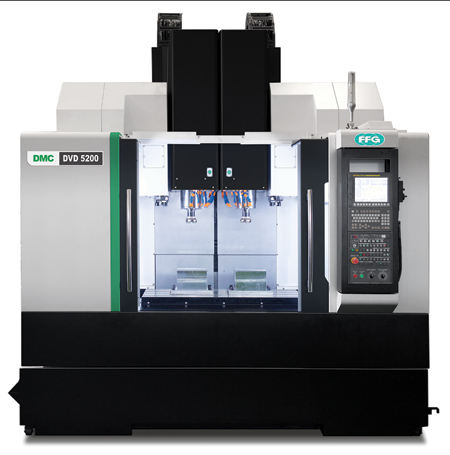

The DMC DVD5200 series is especially suited for all types of accurate machining due to the independent capabilities of Z1-axis and Z2-axis along with a micro-adjustment of a U-axis of +/-2 mm (+/-0.0787"). "This adjustment allows the two spindles to be offset in the X-axis direction, which enables the reduction of jig fixture set-up times as well as the compensation of wearing tools," said the spokesperson. "Cost reduction and higher productivity are realized with two spindles and two ATCs compared to two 3-axis stand-alone VMCs, with an estimated reduced spindle cost of 25%, a 40% floor space savings and one operator instead of two".

Standard features of the DVD 5200 include: FANUC Oi-MF/direct 12,000 RPM spindle, BIGPLUS CAT #40 taper, two 25 HP main spindle motors, two 30-tool station ATCs, spindle oil chiller, coolant through spindle preparation, internal augers and a lift up style chip conveyor. With XYZ axis travels of 40.94" x 20.47" x 23.62" and an open height in Z-axis from 5.91" to 29.52", a variety of workpiece sizes are able to fit into the work envelope. Table size is 47.24" x 20.47" (load capacity of 1,760 lbs.). The DMC DVD series also has additional models including DVD4300 (30 taper) DVD5200L (longer Y-axis option) DVD 6500 with 50 taper spindles. All models can be equipped with an automatic pallet changer (APC) for even greater productivity.

CNC Systems has been a machine tool importer and a distributor for over 30 years and provides parts, service, applications, support, demonstrations and site visits to work with customers on their most difficult machining requirements. DMC is one of the oldest Korean machine tool builders and for many years has been an OEM for some of the largest Korean machine tool builders. Its building expertise includes small gang style lathes to the large multi-axis (Y-axis) oil-country lathes with large spindle bores and steady rests. CNC Systems has a direct sales office and showroom with service and technical support in New England as well as a second facility in Tustin, CA.

For more information contact:

Steve Arcari, President

Office: 207-985-6503

Cell: 860-575-5269

Brian Arcari, Vice President

Office: 714-838-3999 x777

Cell: 508-944-5099

David M. Valentine

National Sales Manager

Office: 817-715-4746

Cell: 949-599-5833

CNC Systems, Inc.
