GAGE-CHEK Now Available for Basic Metrology Applications

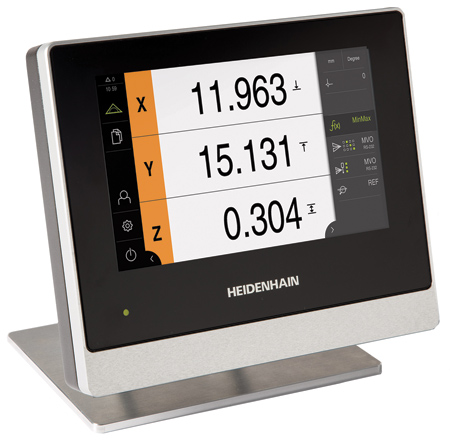

"Featuring a rugged industrial design, HEIDENHAIN's new shop floor hardened GAGE-CHEK 2000 evaluation electronics box is now available," said a company spokesperson. "Offered as a plug & play embedded system along with HEIDENHAIN-brand encoders including length gauges, this metrology unit provides reliable basic measurement of 1D values. The new GAGE-CHEK 2000 is well suited for positioning tasks on many applications, from typical measuring rooms to harsh production environments."

Built on HEIDENHAIN's next generation DRO software and hardware, the GAGE-CHEK 2000 offers a simple-to-view readout and up to 3-axis inputs. Its slim aluminum housing with integrated power adapter and fanless passive cooling system is designed to be sturdy and resilient.

The GAGE-CHEK 2000's straightforward touchscreen is made of hardened glass and supports multi-touch gesture control, including operations with gloves. The logical arrangement of menus and elements provides intuitive user guidance in the use of various functions.

Features of the GAGE-CHEK 2000 include:

  • A digital gauge view that shows the view an operator would have used in the past with any dial gauge
  • Configurability of each axis for length or angle display
  • Measurement series with recording of min. and max. values
  • Simple switching of the counting direction
  • Measured-value output either manually, continuously or when triggered by a touch probe.

The GAGE-CHEK 2000 is available in two main hardware variants that are each provided with standard firmware with basic functions.

For more information contact:

HEIDENHAIN Corporation

333 E. State Parkway

Schaumburg, IL 60173-5337

847-490-1191

www.heidenhain.us
