Multitasking Solution Offers Large-Part Versatility

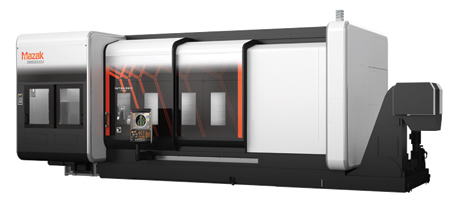

Mazak offers the versatile INTEGREX i-500, an advanced Multi-Tasking solution. As the biggest model in the INTEGREX i Series family, the i-500 offers manufacturers more options for machining large, complex workpieces.

The INTEGREX i-500 is capable of C-axis indexing in 0.0001° increments and comes standard with a 40 HP (30 kW) integral spindle motor that provides a maximum spindle speed of 2,500 RPM. Customers may select one of four different spindle bore configurations depending on application requirements. A high-torque/max. RPM option is available.

Additionally, a 30 HP (22 kW), 12,000 RPM milling integral motor spindle rotates in the B-axis throughout a range of +210° and -30° from vertical. A compact milling spindle head, in conjunction with a generous Y-axis stroke of 16.93" (430 mm), create an increased working capacity for larger applications. Optional milling spindle configurations include a 12,000 RPM, 50 HP (37 kW) high-output spindle, a 20,000 RPM, 32 HP (24 kW) high-speed spindle and 10,000 RPM, 50 HP (37 kW) CAT 50 taper spindle.

For increased versatility, the INTEGREX i-500 accommodates workpieces up to 27.56" (700 mm) in diameter and 62.09" length (1,577 mm), 96.65" length (2,455 mm) or 115.96" length (2,920 mm) for the 1500U/2500U/3000U configurations, respectively. It is also able to meet the machining requirements of a wide variety of workpieces due to its tool magazine capacities, which range from the standard 36 tools up to the maximum of 220 in a 40 taper with field expansion capability or up to 108 tools in a 50 taper magazine.

Further options for the INTEGREX i-500 include a long drill stocker for the 2500U/3000U models, a variety of steady rests capable of supporting workpieces up to 16.14" (410 mm) in diameter and an NC tailstock with built-in center. Optionally available for Done-In-One is a 2nd spindle with three spindle bore options and for increase part throughput a 9-postion lower turret is available with 10,000 RPM milling available.
