Tilting Rotary Table

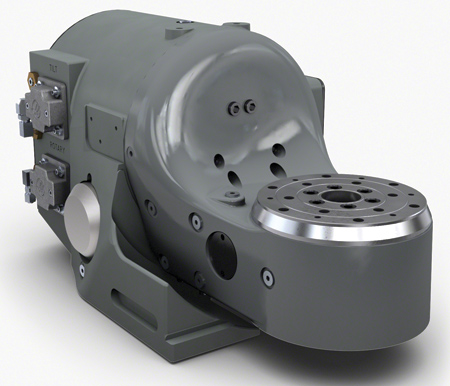

"The TRT160 tilting rotary table from Haas Automation not only puts 5-axis capabilities well within reach of the average job shop, but its new smaller size also provides greater mounting flexibility than its predecessor," said a Haas spokesperson.

"We have redesigned the TRT160 to create a much more compact and versatile 5-axis solution for smaller mills, including Haas Mini Mills and Toolroom Mills. The new unit easily fits on one end of a machine's table, leaving the remainder open for additional fixtures or vises," added the spokesperson. The rotary's 160 mm (6.3") platter - with three tapped bolt-hole patterns - swings parts up to 10.5" (267 mm) diameter, and has a maximum capacity of 150 lbs. The unit provides ±120° of tilt and 360° of rotation for full simultaneous

5-axis motion, or to position parts to nearly any angle for machining.

Brushless servomotors provide 210 ft-lbs. (285 Nm) of torque on the tilt axis, and 112 ft-lbs. (151 Nm) of torque on the rotary axis. Brake torque is 200 ft-lbs. (271 Nm) on the tilt axis, and 100 ft-lbs. (136 Nm) on the rotary axis. Indexing speeds are 104 deg/sec on both axes for quick cycle times.

Connecting the TRT160 to a Haas mill with 4th- and 5th-axis drives is fast and easy, with plug & play compatibility. And the necessary drives can be added in the field to all 3-axis Haas mills to gain 5-axis capability. The drives may be ordered through the online Haas parts catalog at Parts.HaasCNC.com.

"Whether you are doing 3+2 positioning or full 5-axis machining, the TRT160 tilting rotary table can reduce or totally eliminate multiple set-ups, and easily handle multi-sided parts - even on small machining centers," said the spokesperson.
