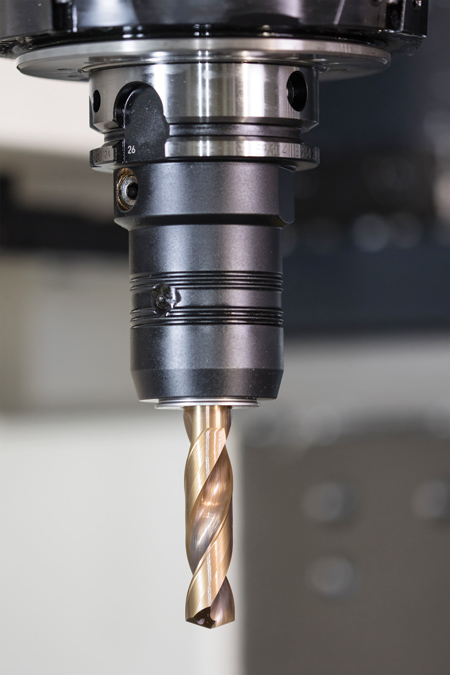

Universal Drill with Multi-Purpose Geometry



"Niagara Cutter offers a solid-carbide drill, Universal Drill, that combines a special multi-purpose geometry with advanced coating technology to provide reliable, predictable tool life and the lowest cost per hole, especially in high-volume production environments," said a company spokesperson.

The Universal Drill's rigid four-facet point geometry provides enhanced centering capability, maintains an IT8/9-hole tolerance and is easy to regrind. A polished AlCrN coating gives the drill high abrasion resistance, toughness and good chip evacuation capabilities.

Well suited for holemaking applications across all industry segments and a wide scope of workpiece materials, including steels, stainless steels and cast irons, the versatility of the Universal Drill helps reduce required tooling inventories.

Available drill diameter sizes range from 0.118" to 0.787" (3 mm to 20 mm) with increments of 0.0039" (0.1 mm). For efficient chip evacuation, the 5 x D and 3 x D length drills with cylindrical shanks offer the option of through-tool coolant capability. All Universal Drills are compatible with Seco shrinkfit holders, hydraulic chucks and high-precision collet chucks.

For more information contact:

Niagara Cutter, LLC

2805 Bellingham Drive

Troy, MI 48083-2046

248-528-5200

www.niagaracutter.com
