Compact LED Signal Light
July 1, 2015

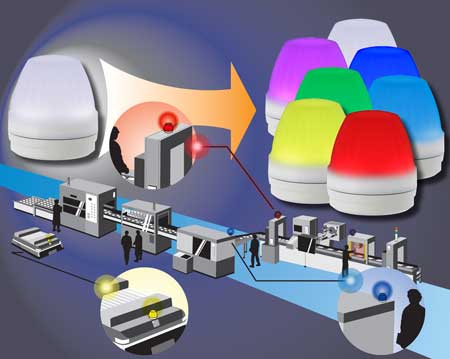

Patlite's compact NE signal light provides versatile status change indication for industrial applications such as conveyor lines, automated guided vehicles, machine tools, robots and warehousing.
Featuring a long life LED, the NE provides seven different discrete signal colors to notify personnel of changing equipment or environmental conditions. On conveyor lines, for example, the NE can shine green during normal operation, red for emergency stop condition, yellow to indicate error, dark blue to indicate material jam, light blue to signal supervisor call or purple to indicate ready to start status. Similarly on an automated guided vehicle, the NE shines green for forward movement, dark blue for reverse, yellow for obstacle detection, red for error, purple for dead battery, etc.
The opaque white lens cover on the NE is designed to uniformly diffuse the light source so that each color emitted shines equally clear and bright. The seven discrete light output colors are created by seven different wiring combinations to the three-wire input. (Power to only the red wire = red light; green wire = green light; blue wire = blue light; red and green wire = yellow light; red and blue wire = purple light etc.). The compact profile of the surface-mounted housing measures 61 mm in height by 57 mm in diameter. The NE is suited for integration in varied industrial settings. It has a rated voltage of 12 to 24 VDC and gasketed construction that gives it an IP66/IP67 rating for very wet or dusty environments. The NE attaches to any flat mounting surface with two screws or optional 1/2" NPT adaptor. Wiring is simplified with its two-meter lead cable.
For more information contact:
PATLITE USA Corporation
20130 S. Western Ave.
Torrance, CA 90501
888-214-2580 / 310-328-3222
sales@patlite.com
www.patlite.com
