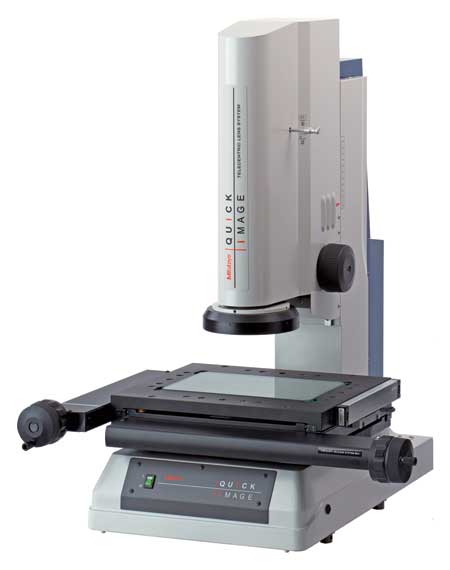

One-Click Quick Image 2D Vision Measuring Systems
July 1, 2015
Mitutoyo America Corporation offers the latest version of the versatile Quick Image series 2D vision measuring system. Two new systems with advanced one-click measuring functionality - available with 0.2X or 0.5X magnification - have been added to the lineup.
The Quick Image Telecentric lens design offers a wide field of view and depth of focus, enabling easy measurements on workpieces with multiple step heights. A new one-click measurement function enables measurement and tolerance judgment with a single mouse click. This function enables automatic detection of a workpiece position and inclination, and batch measurement of multiple parts with the same shape, up to a maximum of 1,000 workpieces at one setting. Measurement results are displayed in real time directly on the video image, which enables tolerance limits to be seen at a glance. High-luminance with built-in LED lighting and a 3-megapixel color camera enable observation and measurement using high-resolution images.
Additional key features:
- Easy mode for operation for entry-level users
- Switch between large focal depth mode (normal) and high-resolution mode
- Wide field, rapid batch and high-accuracy measurement
- User defined overlay templates
- Large line-up of X, Y stage sizes.
For more information contact:
Mitutoyo America Corporation
965 Corporate Blvd.
Aurora, IL 60502
630-820-9666
info@mitutoyo.com
www.mitutoyo.com
