Videoscopes for Remote Quality Control Inspections
June 1, 2014

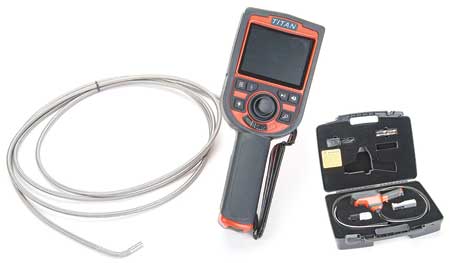

Titan Tool's TVSG Series Videoscope records video or still images at remote quality control inspection. (right) Borescope and accessories are supplied in a foam-fitted carrying case.
Titan Tool Supply offers a line of videoscopes to conduct remote quality control visual inspections required for aviation maintenance, casting inspection, cavity inspection, diesel or gasoline engine repair, locomotive maintenance, ship maintenance and other applications. The Titan Tool model TVSG videoscopes have the capability to record video or still images on the supplied 8GB SD card.
The Titan Tool TVSG videoscopes feature 360° articulation with greater than 90° bending angle and five different light level adjustments controlled by a mechanical joystick for smooth, accurate control and immediate response to inputs. This also enables the camera tip to be steered through narrow bores, channels and complex curves. Flexible testing cables are constructed of durable, corrosion-resistant braided stainless steel and are available in diameters of 4 mm (0.157") and 6 mm (0.236") and in lengths of 1.5 m (59") and 3.0 m (118").
Titan Model TVSG videoscopes have a field of view of 80° / 60° and depth of field of 15 mm to infinity with 5X zoom function. The camera is illuminated by LED lights that can be adjusted in five different levels from off to high to deliver the correct amount of light. Each model is supplied with a foam-fitted carrying case that includes an AC power cord, AC battery charger, four rechargeable NiCad AA batteries (up to two hours working time per charge), an 8 GB SD card and a USB cable.
For more information contact:
Frank Menza, President
Titan Tool Supply,Inc.
68 Comet Avenue
Buffalo, NY 14216
716-873-9907
info@titantoolsupply.com
www.titantoolsupply.com
