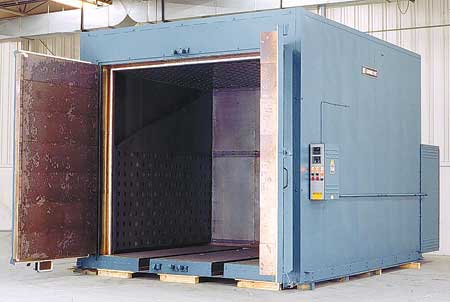

1,100 °F Electric Walk-In Oven
June 1, 2014
Grieve offers a high temperature walk-in oven for heat treating and curing paint and varnish.
The oven features maximum operating temperature of 1,100 °F with 240 kW installed in Incoloy sheathed tubular heating elements. Workspace dimensions are 9' wide x 9' deep x 9' high. The 24,500 CFM, 20 HP recirculating blower provides combination airflow. The oven features a type 304, 2B finish stainless steel interior; inner and outer door gaskets; inner gasket seals directly against door plug; and outer gasket seals directly against front face of oven. Other features include safety equipment for handling flammable solvents and an 8" insulated floor with truck wheel guide tracks.
For more information contact:
Frank Calabrese, VP
The Grieve Corporation
500 Hart Road
Round Lake, IL 60073-2898
847-546-8225
sales@grievecorp.com
www.grievecorp.com
