Industrial PC for Machine Tools
June 1, 2014

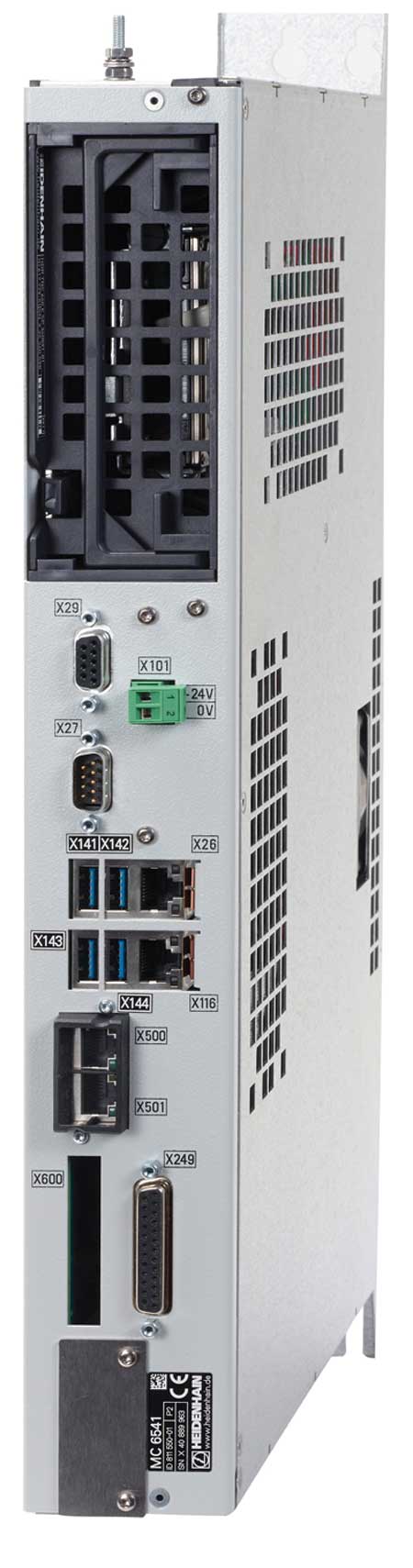

Heidenhain offers the IPC 6641, a new industrial PC for machine tools. Common applications for this industrial PC include individual automation solutions, operation of Windows software from an OEM and remote access to Heidenhain iTNC 530 contouring controls.
"Offering Intel Celeron and Core i7-3 processors on a HSCI hardware platform, this IPC 6641 industrial PC provides increased computing power and a significantly improved graphic performance while consuming less power than past models," said a company spokesperson. The new processors are built within Ivy Bridge architecture, and structural width has been reduced to 22 nm.
The IPC 6641 may be utilized as an additional remote station for operating the machine tool or machine units such as a tool changing station. The remote operation, which was designed for Heidenhain's TNC controls, permits simple connection of the IPC via an Ethernet connection with cable lengths of up to 100 meters.
According to the company, starting and remotely operating Windows-based applications is simple on the IPC 6641 industrial PC via Heidenhain's TNC user interface. Since Windows runs on the industrial PC, it does not influence the NC machining process. A second display is not necessary since the Windows applications are displayed on the TNC's screen via remote access.
The Windows 7 or 8 operating systems can be installed on the hard disk, which is ordered separately.
Additionally, the IPC 6641 comes with:
- 4 x USB 3.0
- 2 x Ethernet 1 Gbps
- RS 232-C
- Connection for 24 V power supply
- VGA interface.
For more information contact:
Heidenhain Corporation
333 E. State Parkway
Schaumburg, IL 60173-5337
847-490-1191
info@heidenhain.com
www.heidenhain.us
